R32 4Motion V6-3.2L (CBRA) (2008)
/Page-1368003.png)
-

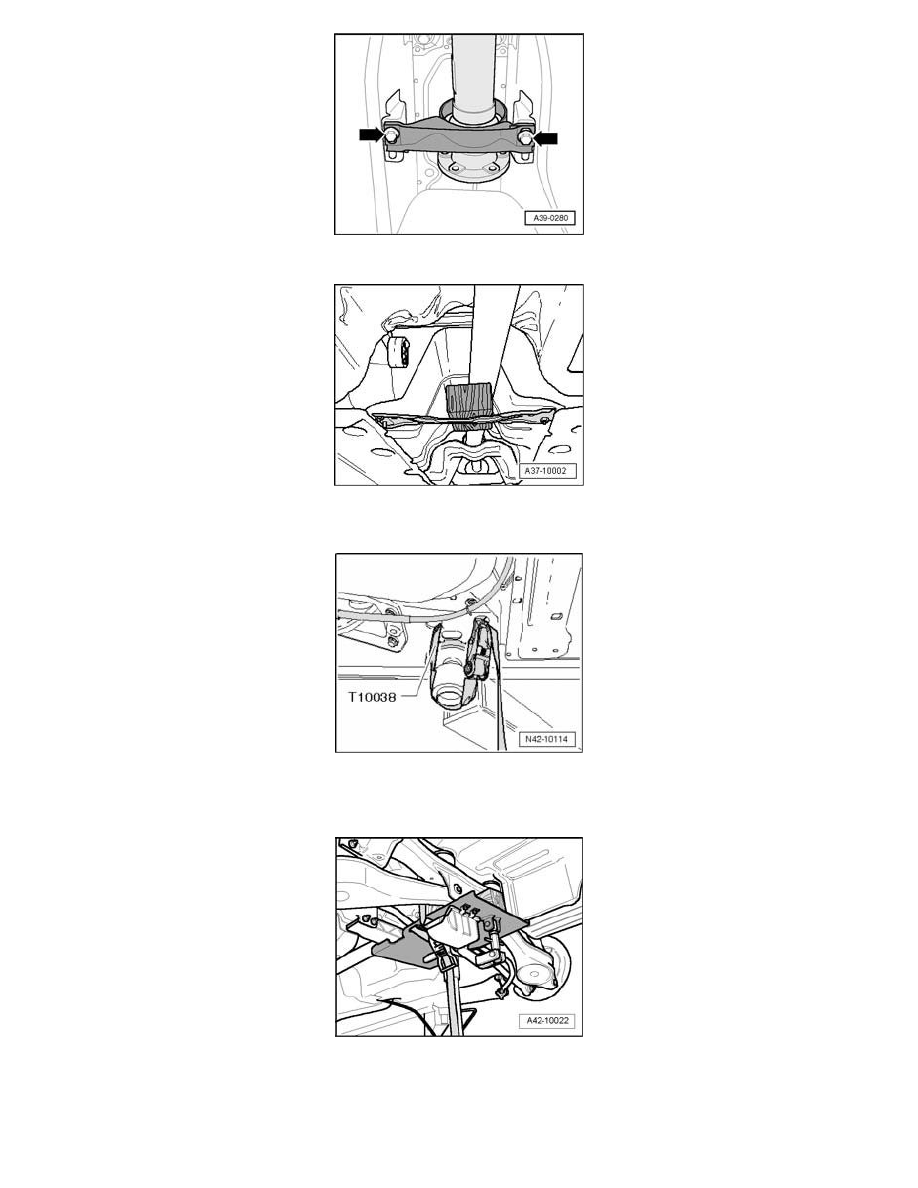

Remove center bracket bolts -arrows- two turns.
-
Support driveshaft at tunnel support with a piece of wood.
-
Move rear driveshaft tube as far as possible in direction of transmission.
-
Now secure vehicle on both sides to hoist with Tensioning Straps T10038.
CAUTION! If vehicle is not secured, it could slide off of hoist.
-
Place engine/transmission jack V.A.G 1383 A with universal transmission support V.A.G 1359/2 below subframe and secure with strap.
