R32 4Motion V6-3.2L (CBRA) (2008)
/Page-951004.png)
-

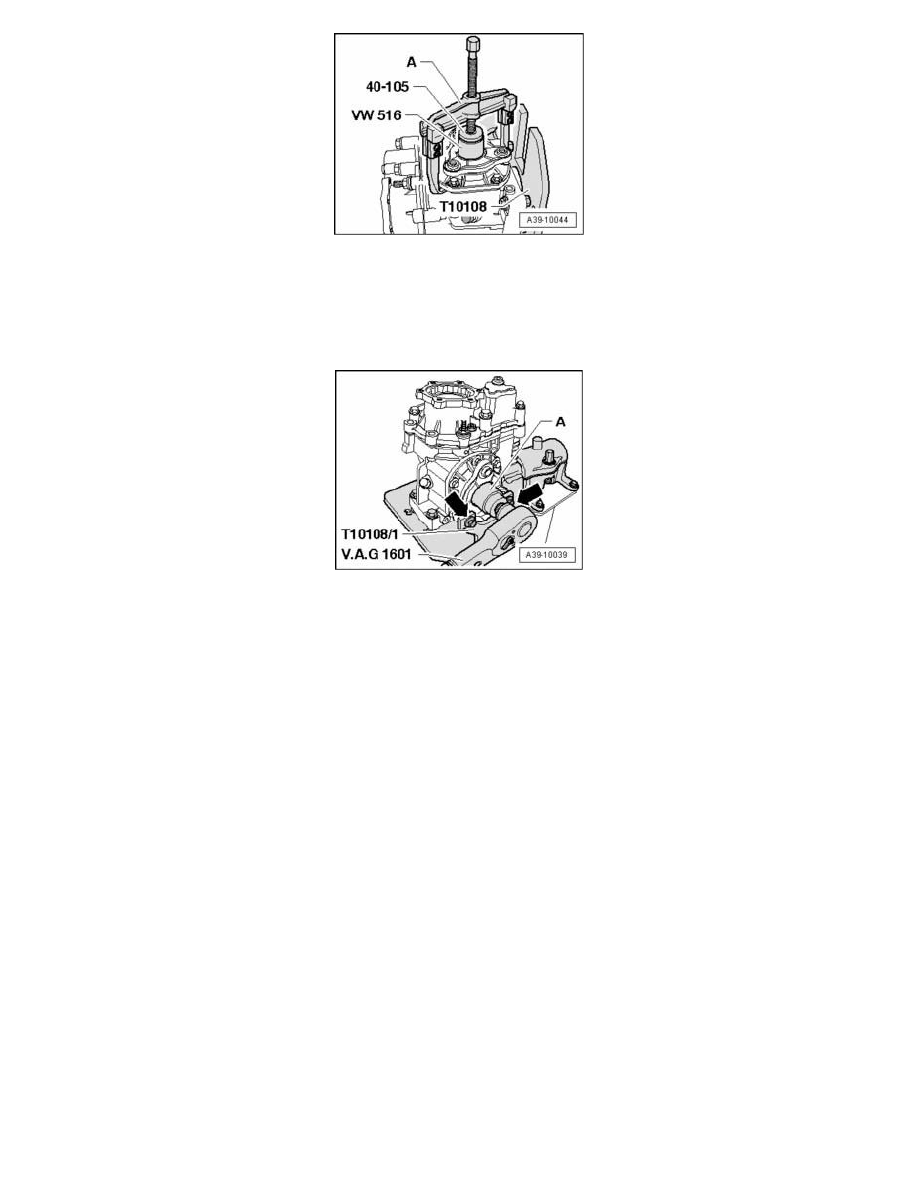

Pull on output flange with two arm puller -A-.
A - Two arm puller e.g. Kukko 20/10
-
Position pulling hook on underside of drive pinion housing.
-
Coat threads on new hex nut with locking compound D 000 600.
-
Tighten new output flange hex nut, tightening specification
A - Socket attachment SW 36 for 3/4 inch drive
-
Install bevel gear transfer case.
-
Add gear oil to bevel box.
