R32 4Motion V6-3.2L (CBRA) (2008)
/Page-974006.png)
-

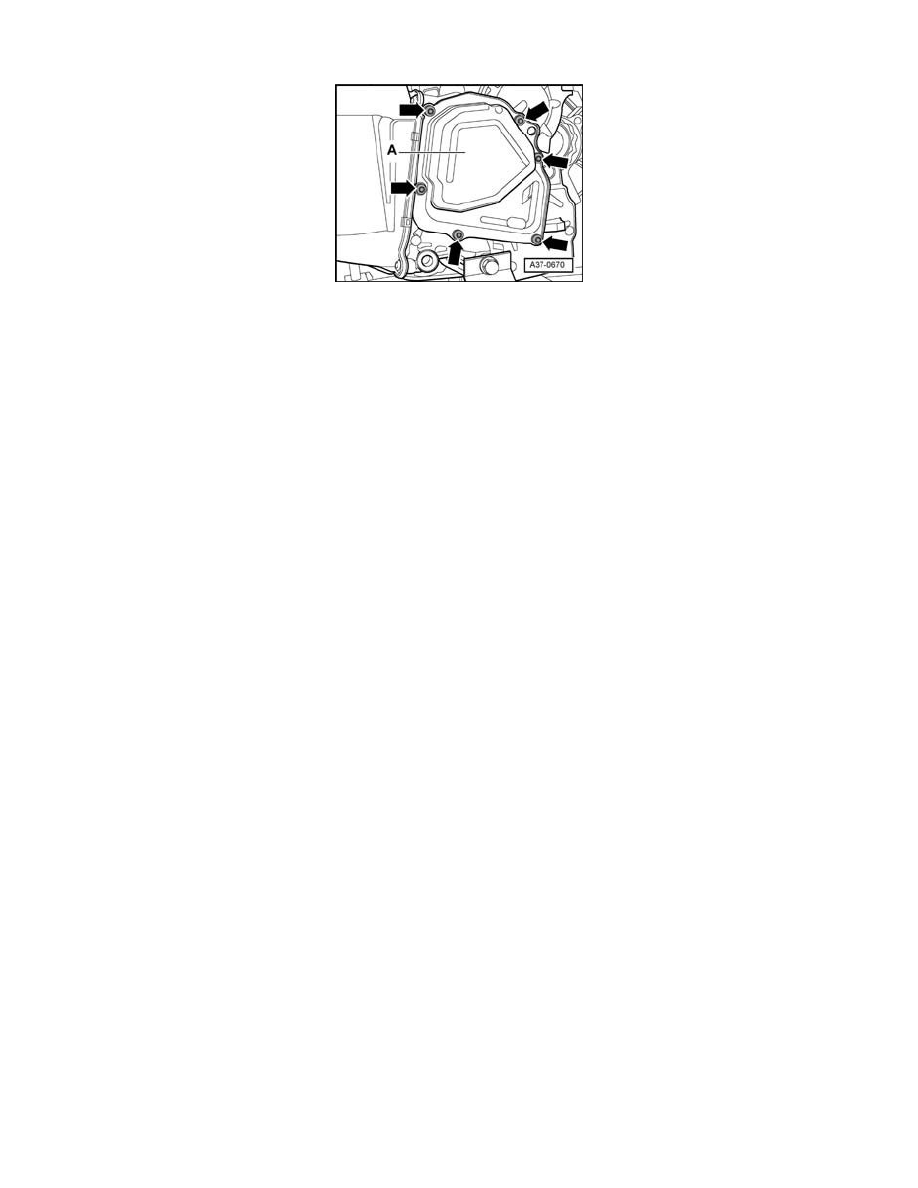

Install new bolts -arrows- and tighten in a diagonal sequence in multiple stages to 10 Nm.
-
Set new oil pump cover -A- in place and tighten screws -arrows- in diagonal sequence and in multiple stages to 8 Nm.
-
Install cable bracket on large cover and tighten nuts to 10 Nm.
-
Connect the connector of the Direct Shift Gearbox (DSG) Mechatronic J743 and engage the retainer by turning.
-
Install any parts that were removed.
-
Connect battery Ground (GND) cable.
CAUTION! Do not start engine!
-
Replace DSG oil and filter.
-
Install the noise insulation if necessary.
-
Perform basic measurement on Direct Shift Gearbox (DSG) Mechatronic J743.
