R32 4Motion V6-3.2L (CBRA) (2008)
/Page-2191002.png)
-

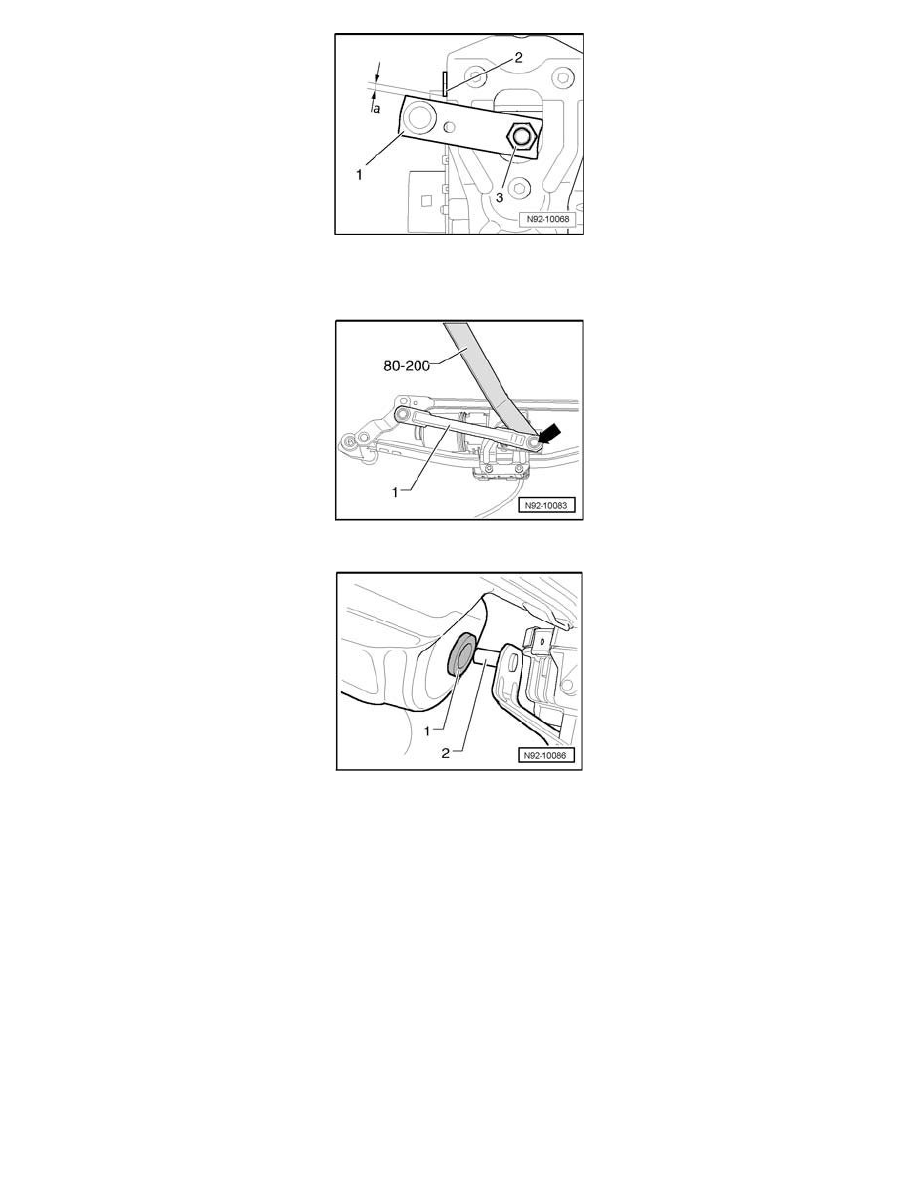

Place motor crank - 1 - onto wiper motor shaft. Distance - a - to stop - 2 - must be 3 ± 1 mm.
-
Screw motor crank to wiper motor shaft using mounting nut - 3 -.
-
Tighten all threaded connections to the specification.
-
Push ball head - arrow - of linkage - 1 - on to motor crank.
