Timing Belt: Diagrams
- Make
- Volkswagen
- Model
- Rabbit Hatchback
- Engine
- L4-1715cc 1.7L SOHC
- Year
- 1982
- Section
- Timing Belt › Diagrams
MaintenanceDiagrams

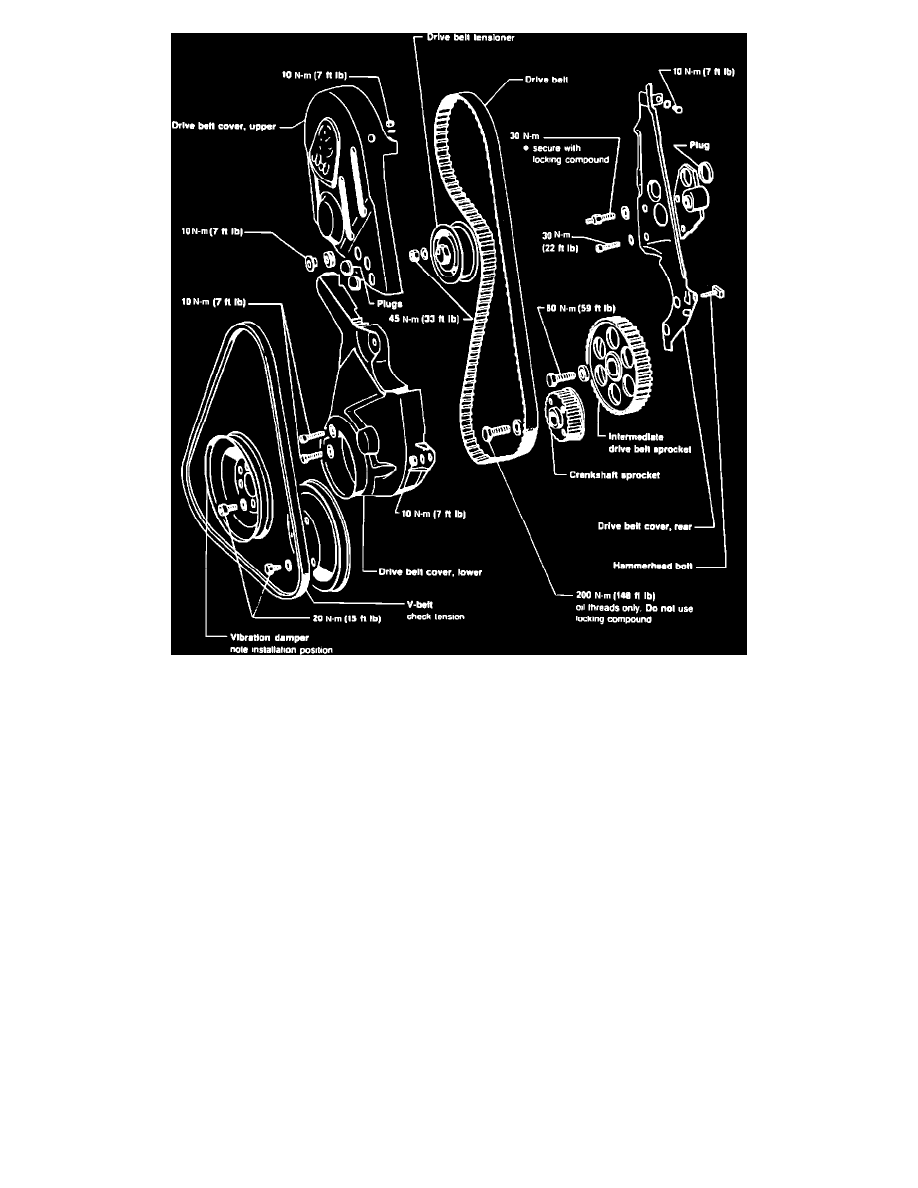

Exploded View Of Components
