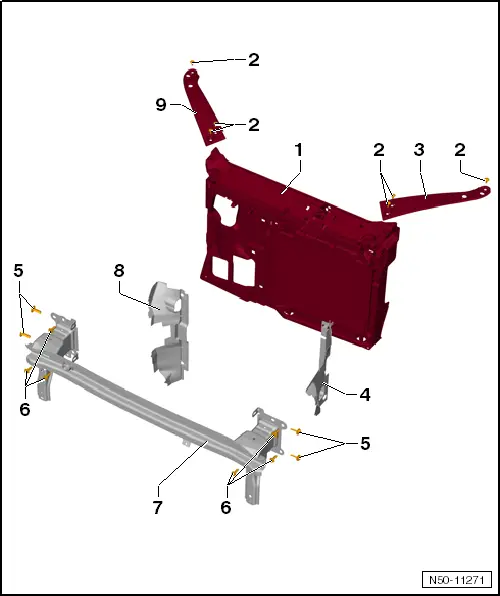

| Assembly overview - lock carrier |
| 1 - | Lock carrier with add-on parts |
| q | Removing and installing → Chapter |
| q | Service position → Chapter |
| 2 - | Bolt |
| q | Qty. 3 on each side. |
| q | Specified torque: 8 Nm |
| 3 - | Mounting plate |
| q | Left. |
| 4 - | Air guide |
| q | Left. |
| 5 - | Bolt |
| q | Qty. 2 on each side. |
| q | Specified torque: 8 Nm |
| q | For fastening bumper carrier -9- to lock carrier -1-. |
| 6 - | Bolt |
| q | Qty. 3 on each side. |
| q | Specified torque: 20 Nm |
| 7 - | Bumper carrier |
| 8 - | Air guide |
| q | Right. |
| 9 - | Mounting plate |
| q | Right. |
