Removing and installing dash panel cover on driver's side, "High" > < Removing and installing dash panel cover on driver's side

Up!

Removing and installing dash panel cover on driver's side, „Basis“
Removing and installing dash panel cover on driver's side, „Basis“
Special tools and workshop equipment required

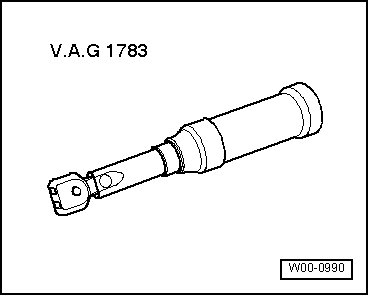

t  Torque wrench -V.A.G 1783-
  Note
For greater clarity, steering wheel is not shown in figure. Its removal is not necessary.
Removing
  W00-0990
–  Switch off ignition.
–  Remove side dash panel cover on driver side → Chapter.
–  Press light switch -E1- forwards and turn to right until it is vertical. Withdraw and disconnect cable harness → Electrical system; Rep. gr.96.
–  Release locking lever of steering wheel positioner.
–  Remove middle dash panel trim → Chapter.
–  Remove centre console → Chapter.
–  Remove lower A-pillar trim → Chapter.

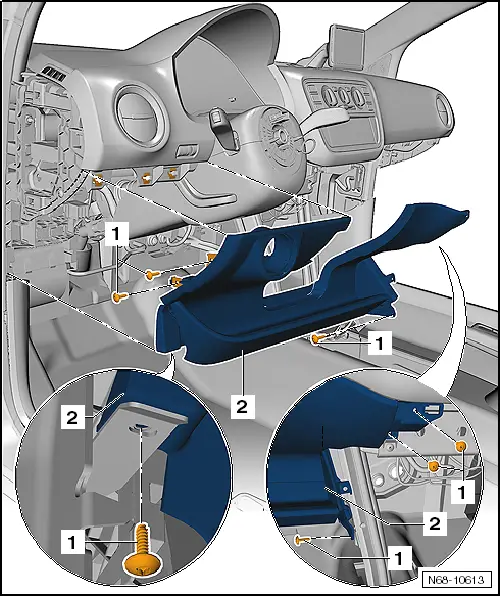

–  Unscrew bolts -1- (1.5 Nm).
–  Remove driver's side dash panel cover -2- from dash panel.

Installing
  Note
Before installing, check all fasteners for damage and renew if necessary.
–  Install in reverse order of removal.
