Removing and installing head restraint

Removing

–	Release rear seat backrest and fold forwards.

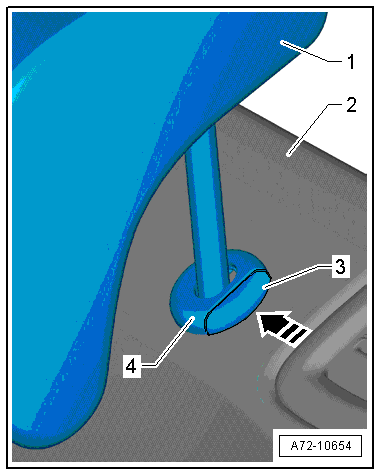

–	Press release tab -3- for height adjustment on head restraint guide -4--arrow- and, at same time, pull head restraint -1- upwards out of rear seat backrest -2-.

Installing

–	Push head restraint to lowest position in rear seat backrest.

–	Check whether head restraint is engaged correctly.

l	It should no longer be possible to pull the head restraint out of the rear seat backrest.
