Removing and installing head restraint guide
Removing and installing head restraint guide

Removing

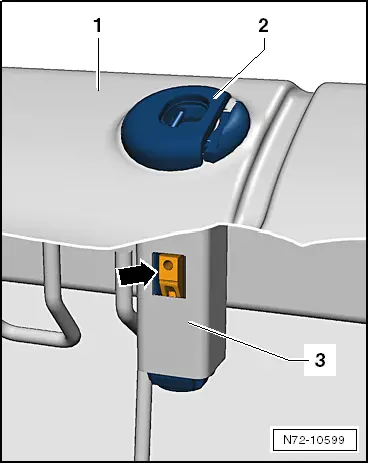

–  Open backrest cover with cushion -1- at rear and
–  Pull backrest cover up until head restraint tube -3- welded into rear seat backrest frame is visible with head restraint guide -2-.
–  Press locking tab of head restraint guide inwards -arrows-, at same time pulling head restraint guide from rear seat backrest frame.
Installing
Installation is carried out in reverse order.
  N72-10599
