Assembly overview - parking brake

Make

Volkswagen

Model

Up!

Section

Brake, brake mechanics › Parking brake › Assembly overview - parking brake

Running gearAssembly overview - parking brake

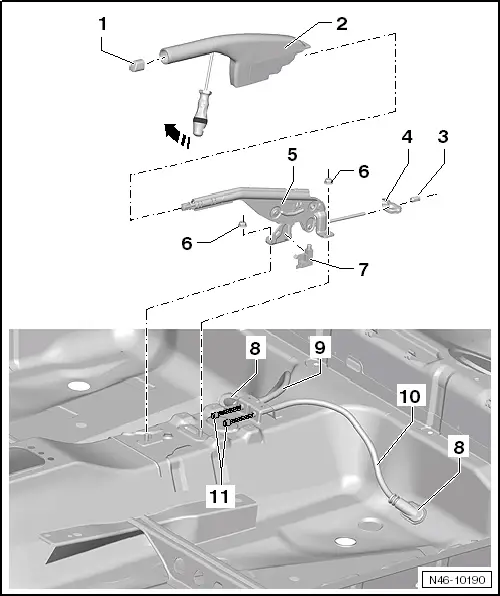

Assembly overview - parking brake

1 -	Push button

q	Pulling off → Fig.

q	Will be destroyed when pulling off; must be renewed.

q	Push onto parking brake lever push rod and ensure both locking lugs are engaged by pulling slightly.

2 -	Parking brake lever trim

q	To remove, first pull off push button → Fig..

q	Lever up release tab in rear lower area of handle with a screwdriver.

q	Then pull off forwards.

3 -	Adjustment nut

q	Adjusting parking brake:

q	Vehicles with drum brakes → Chapter.

4 -	Compensator

5 -	Parking brake lever

q	Before removing, remove centre console → General body repairs, interior; Rep. gr.68.

6 -	Hexagon nut, 23 Nm

7 -	Parking brake switch -F321-

8 -	Rubber grommet

9 -	Right guide tube

10 -	Left guide tube

11 -	Brake cables

q	Removing and installing → Chapter.

Removing push button   Note Will be destroyed when removing; must be renewed.
