Removing and installing front bass loudspeakers
Removing and installing front bass loudspeakers
  Note
Removal and installation is performed in the same manner on the left and right sides.
Removing
Before beginning dismantling work, perform the following steps:
–  Switch off ignition and all electrical consumers, and remove ignition key.
In order to replace a loudspeaker, the door trim must first be removed → Trims/insulation; Rep. gr.70

–  Squeeze connector lock at loudspeaker in -direction of arrows- and pull out connector -1-.
  N91-11239
–  Drill out rivets -arrows- with a suitable drill bit (< 4.5 mm) and take out loudspeaker.
  Note
t  It is essential that all swarf be removed from the door because otherwise corrosion damage will occur.
t  Immediately rectify any damage to paintwork caused when drilling out rivets.
Installing
  N91-11238

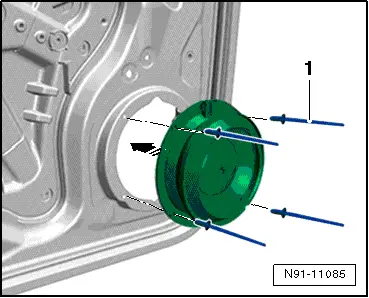

–  Insert loudspeaker in -direction of arrow- and secure with 4 rivets -1-.
  Note
When installing new loudspeaker, secure with special pop rivets (note part number!)
–  Push connector back onto loudspeaker.
Remainder of installation is carried out in reverse order of removal.
