Removing and installing rear bass loudspeakers

Make

Volkswagen

Model

Up!

Section

Infotainment › Sound system › Removing and installing rear bass loudspeakers

Vehicle electricsRemoving and installing rear bass loudspeakers

Removing and installing rear bass loudspeakers   Note Removal and installation is performed in the same manner on the left and right sides. Removing Before beginning dismantling work, perform the following steps: –  Switch off ignition and all electrical consumers, and remove ignition key. In order to replace a loudspeaker, the side wall trim must first be removed → Trims/insulation; Rep. gr.70

–  Squeeze connector lock at loudspeaker in -direction of arrows- and pull out connector -1-.

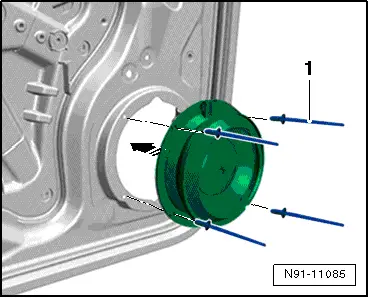

–  Drill out rivets -arrows- with a suitable drill bit (< 4.5 mm) and take out loudspeaker.   Note t  It is essential that all swarf be removed from the door because otherwise corrosion damage will occur. t  Immediately rectify any damage to paintwork caused when drilling out rivets. Installing

–  Insert loudspeaker into trim and secure with 4 rivets.   Note When installing the new loudspeaker, secure it with special blind rivets (note part number). Remainder of installation is carried out in reverse order of removal.
