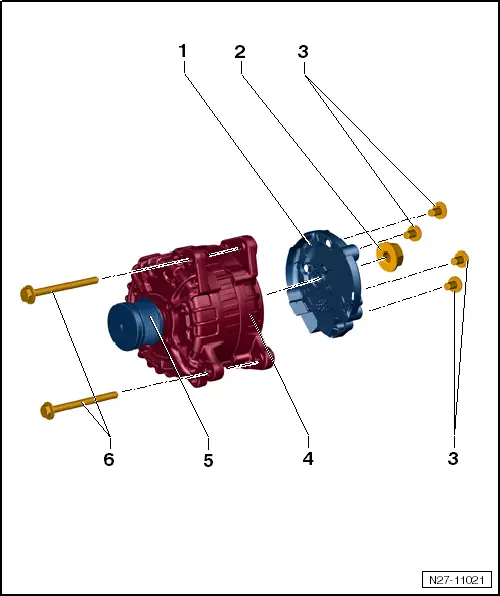

| Assembly overview - alternator |
| 1 - | Protective cap for alternator |
| 2 - | Nut for securing battery positive cable |
| q | 20 Nm |
| q | Securing B+ (battery positive) wire to alternator |
| 3 - | Bolts for securing protective cap for alternator |
| 4 - | Alternator |
| q | Removing and installing alternator → Chapter |
| q | Checking alternator → Chapter |
| q | Removing and installing poly V-belt pulley on alternator → Chapter |
| q | Removing and installing voltage regulator → Chapter |
| 5 - | Belt pulley |
| q | 80 Nm |
| q | Checking poly V-belt → Chapter |
| 6 - | Hexagon head flange bolts |
| q | M8 |
| q | 20 Nm |
