Drive Belt: Diagrams

Make

Volvo

Model

200 Series 240

Engine

L4-2.3L SOHC VIN 88 B230F

Year

1986

Section

Drive Belt › Diagrams

MaintenanceDiagrams · page 1 of 2

Drive Belt: Diagrams

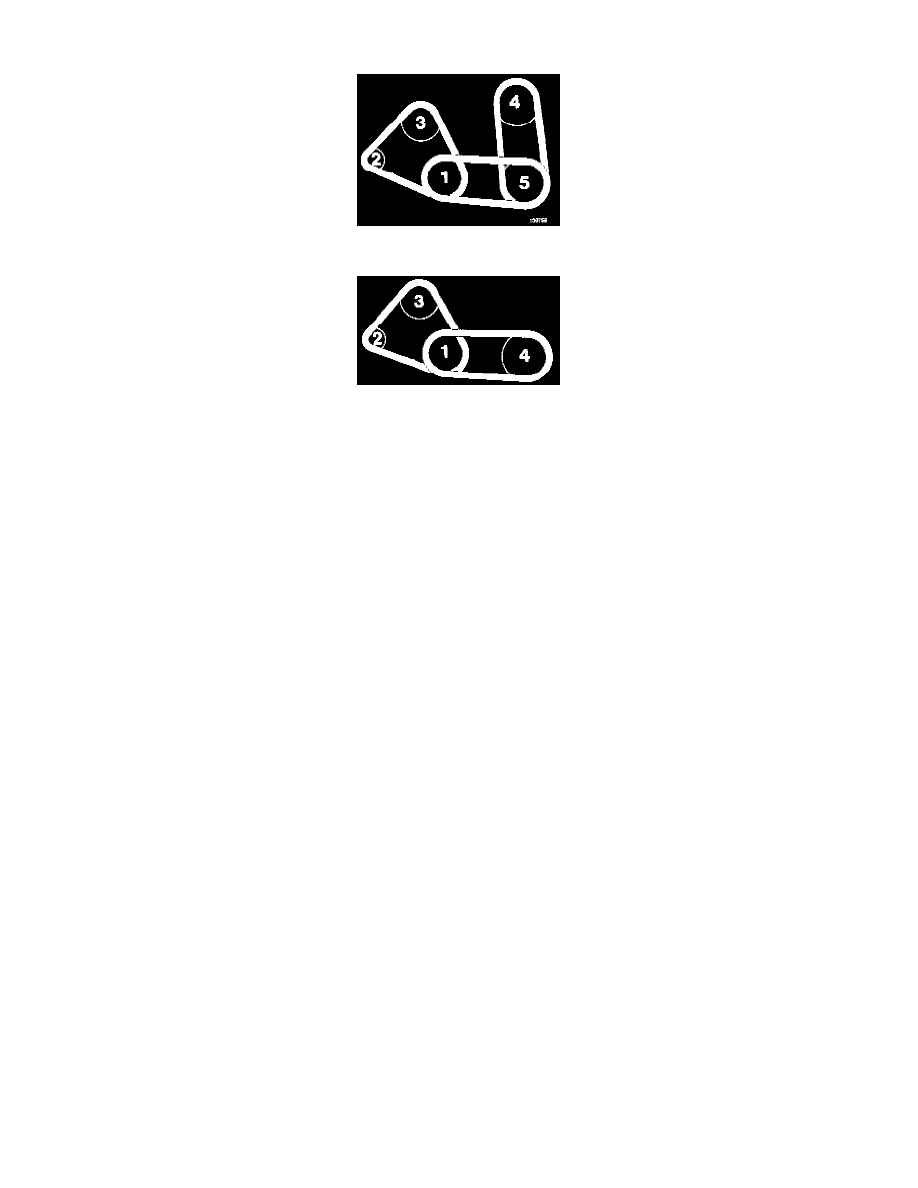

Drive Belt Routing [AC & PS]

Drive Belt Routing [non AC]

Refer to Image:

1. Crankshaft pulley
2. Alternator
3. Cooling fan
4. Power steering pump
5. AC Compressor
