240 L4-2127cc 2.1L SOHC Turbo B21FT FI (1982)
Front Door Panel: Service and Repair

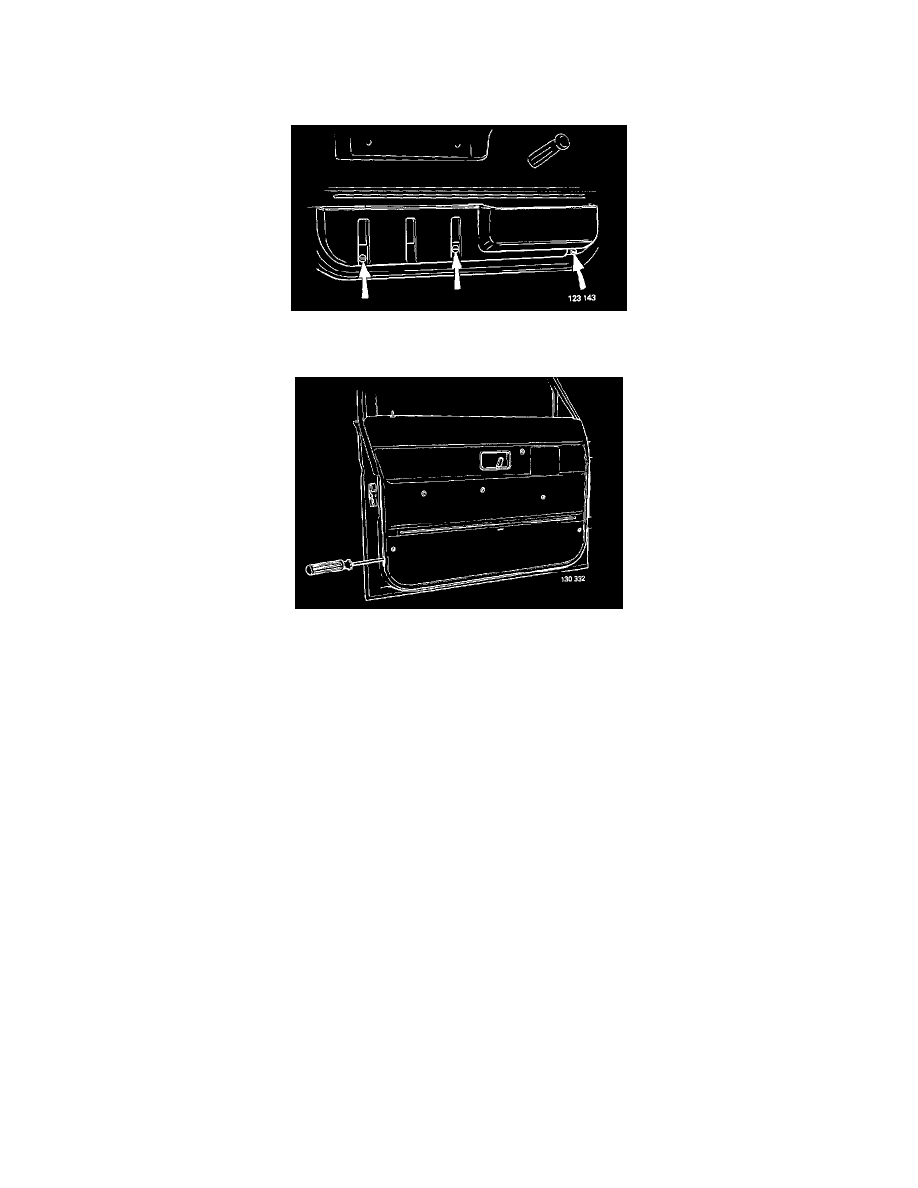

DOOR TRIM PANELS, REPLACEMENT
To remove:
Remove side pocket
Turn 3 clips 90° and lift off pocket.
Remove:
-
armrest
-
door handle casing
-
glass regulator handle
-
lock button
-
trim panel (carefully pry off as near as possible to retaining clips).
To install:
Apply a strip of body putty P/N 277253-1 around the door.
Install:
-
condensation trap
-
trim panel (make sure that clips are not broken)
-
remaining parts.
