Radio - Interference On AM Band (Electronic Noise Suppressor) (page 2 of 6) – Volvo 780 V6-2849cc 2.8L SOHC B280F (1987)

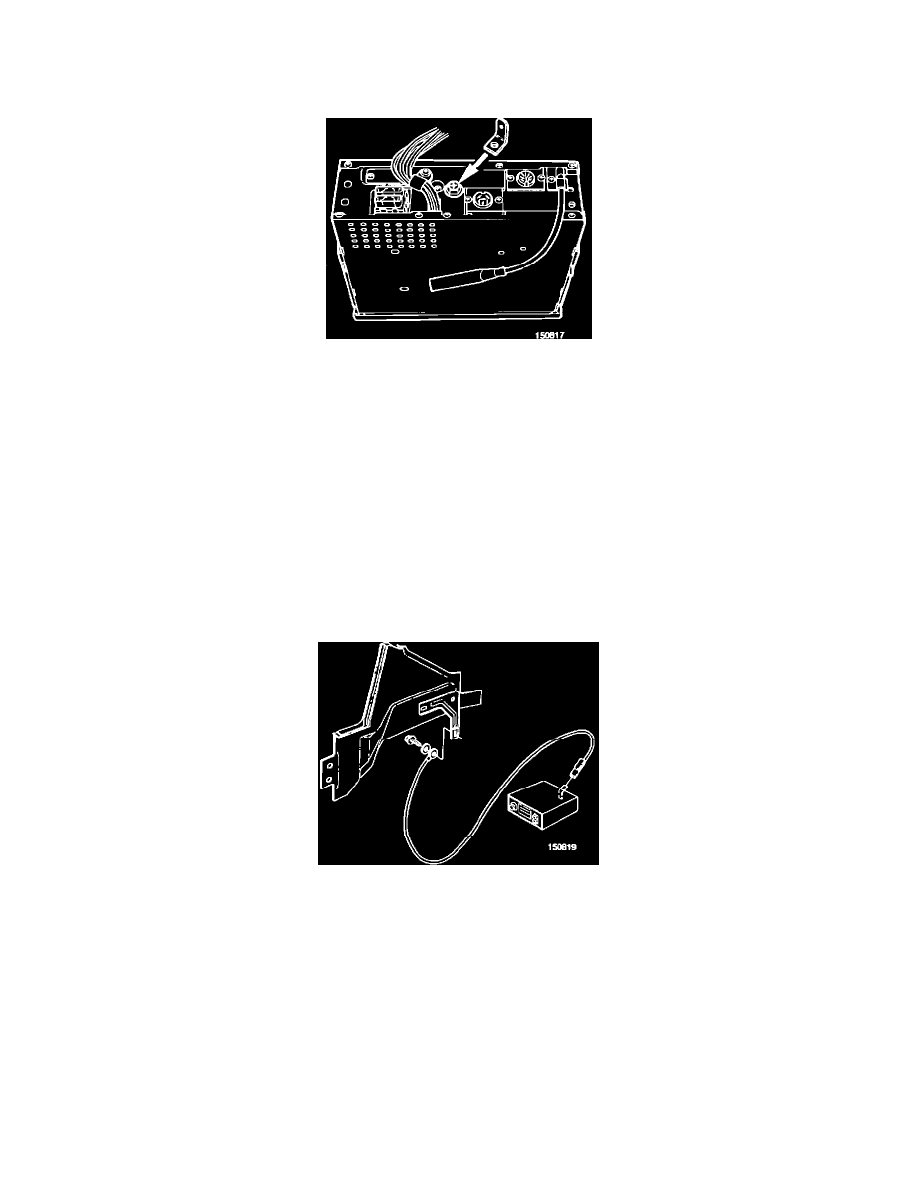

On some cars, the radio may be fitted with a 9-pole supplementary wiring kit and a condenser screwed to the radio chassis as illustrated.

Unscrew condenser and remove wiring kit. Reconnect ordinary radio wiring.

INSTALLATION OF RADIO GROUND LEAD

Applies to:

740        - 1990 *
760

1982-1987

Note:

This step does not apply to 1988-90

760s.

*

Later 740s may already be equipped with the new ground lead also.

If not already installed, attach angled terminal lug supplied with kit to rear of radio.

Push ground lead onto lug.

Run lead to bottom bracket on right-hand side panel.

Fold back carpet on right-hand side and secure lead to body using bracket screw.

Reinstall radio and glove compartment.

Reinstall carpet.
