C30 T5 L5-2.5L Turbo VIN 67 B5254T7 (2008)
Body Emblem: Service and Repair

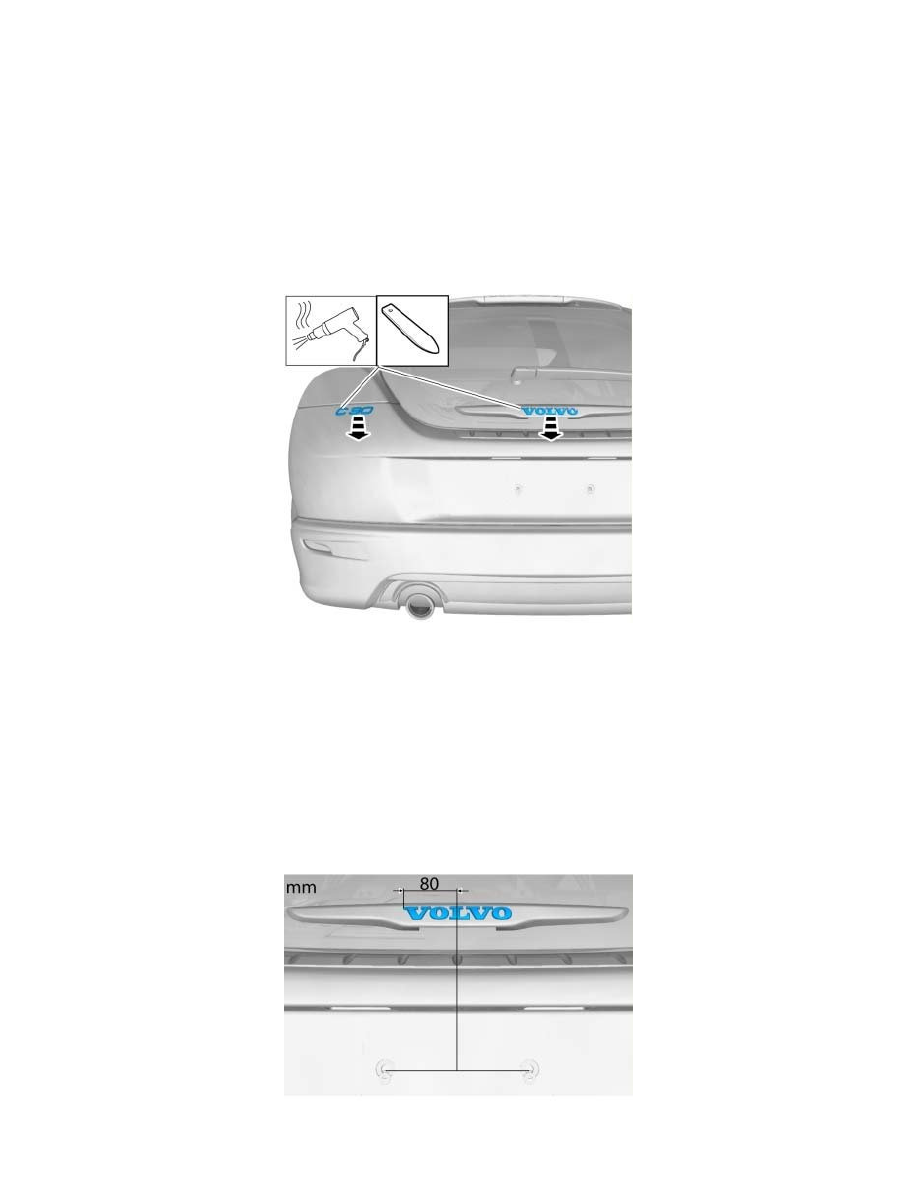

Luggage Compartment Lid Badges
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
Materials:
Designation.........................................................................................................................................................................................................Part number
Cleaning agent.........................................................................................................................................................................................................9192678-2
Removal
NOTE: Removal steps in this procedure may contain installation details.
CAUTION: Do not damage the vehicle paintwork.
Installation
CAUTION:
-
Make sure that the mating faces are at a minimum temperature of +20 degrees C.
-
Make sure that the mating faces are clean and free of foreign material.
Use: Cleaning agent, 9192678-2
CAUTION:
-
Make sure that the mating surfaces are dry.
-
Apply even pressure along the entire component.
