C30 T5 L5-2.5L Turbo VIN 67 B5254T7 (2008)
Seat Back: Service and Repair
Front Seat Backrest
Front seat backrest
Special tools:
115 8962 CRIMP PLIERS See: Tools and Equipment/115 8962 Crimp Pliers
Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the
essential information in the illustrations is always correct.
Preparatory work
Removing the front seat
Remove the front seat. See: Front seat See: Service and Repair/Removal and Replacement/Front Seat.
Relieve the tension in the lever.
Carefully detach the cover of the lever/knob and pull the lever/knob straight out.
If the front seat is manually operated, remove the backrest adjustment knob by pulling it straight out.
Press down the 2 catches in the bottom edge of the shock protection and press through the upholstery.
Lift the head restraint upward while the catches are pressed.
Remove:
-
the switch/runner on the top edge of the backrest
-
the side panel as described in Side panel front seat See: Service and Repair/Removal and Replacement/Side Panel Front Seat.

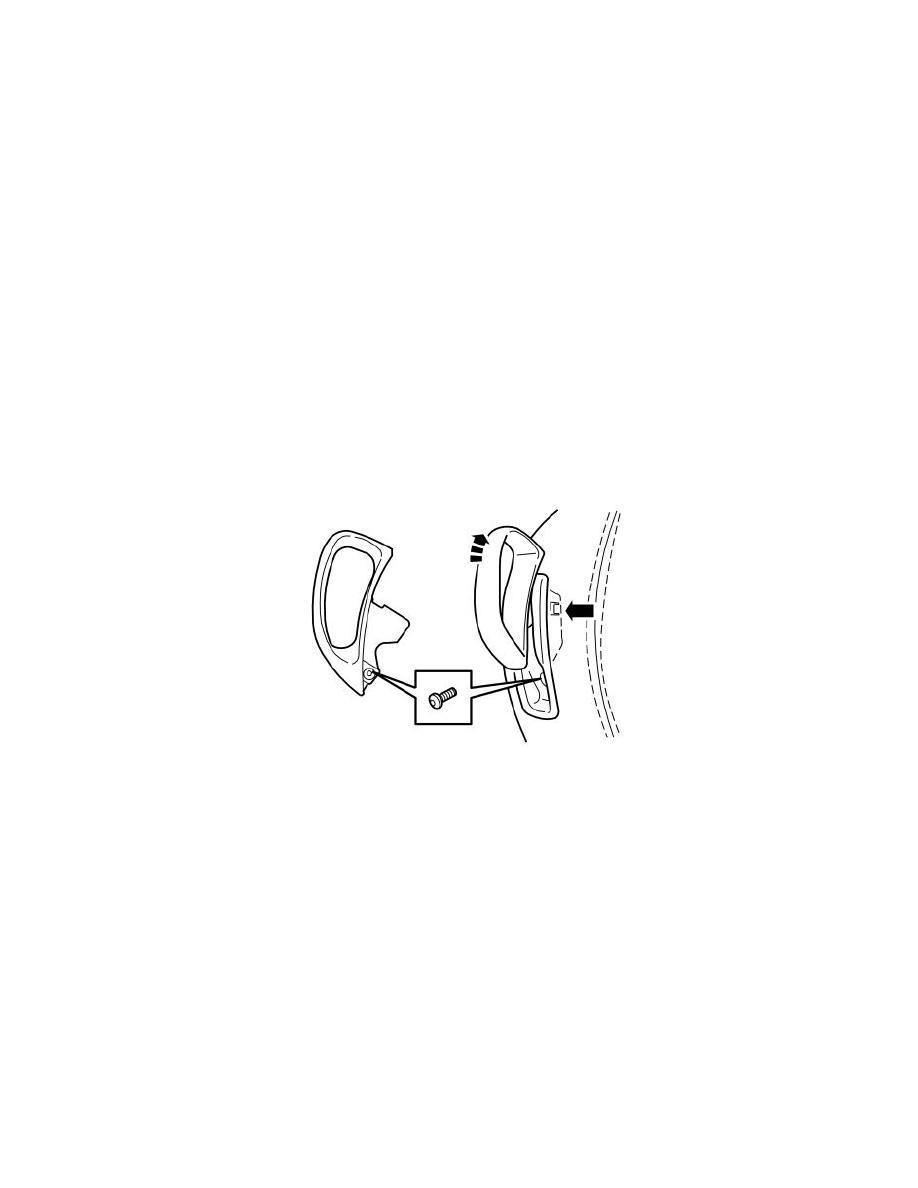

Lift up the handle.
Remove:
-
the screw of the handle
-
the handle
-
the screw of the runner.
Release the 2 catches of the runner and then angle it out.
Removal
Removing the backrest upholstery
