C30 T5 L5-2.5L Turbo VIN 67 B5254T7 (2008)

  • Body and Frame
  • Seats
  • Seat Heater Control Module
  • Component Information
  • Locations
  • Changes Introduced Up to and Including April 2007

Page 1
background image

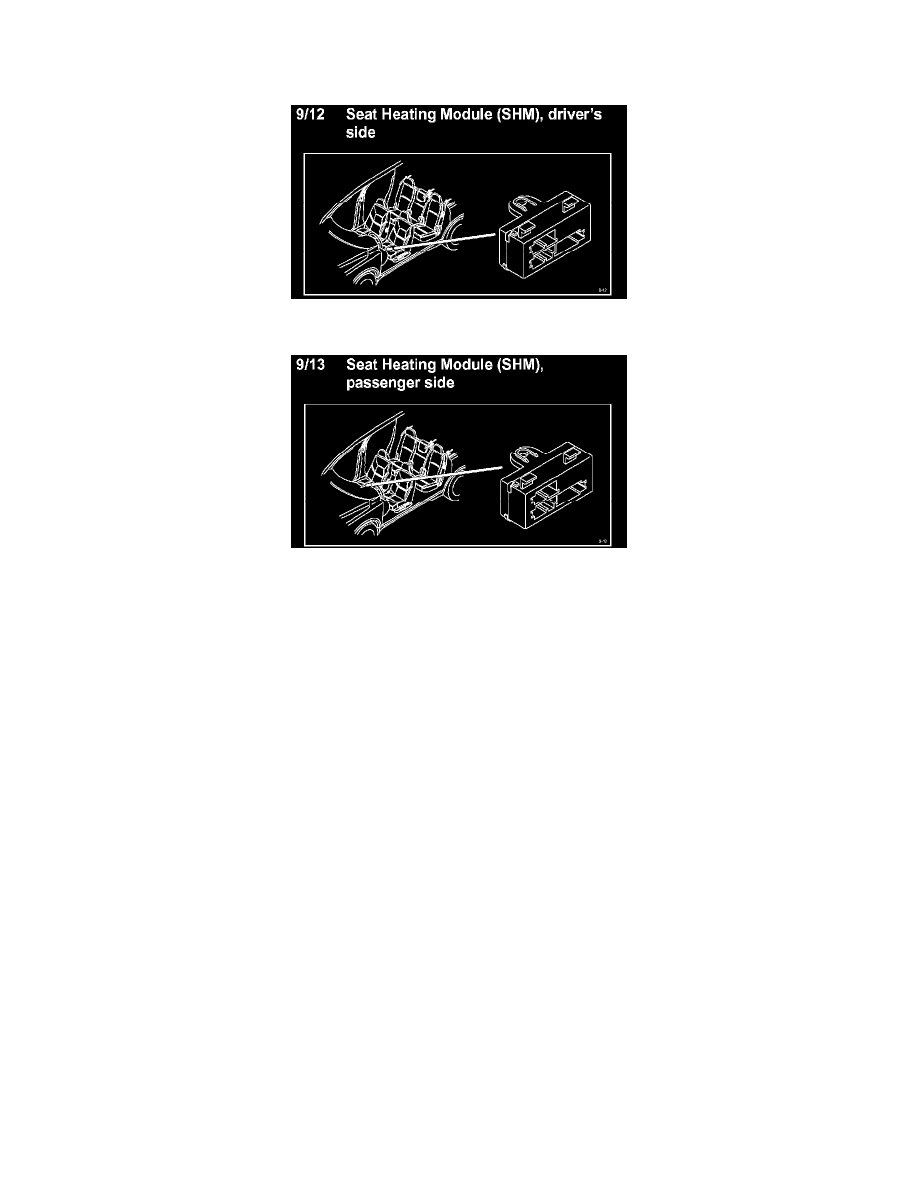

Seat Heater Control Module: Locations
Changes Introduced Up to and Including April 2007

9/12 Seat Heating Module (SHM), Driver's Side

9/13 Seat Heating Module (SHM), Passenger Side
