Diagram Information and Instructions|Page 40426 > < Diagram Information and Instructions|Page 40424

C70 L5-2.4L Turbo VIN 56 B5244T (2000)

Page 1
background image

Control Module HVAC: Testing and Inspection

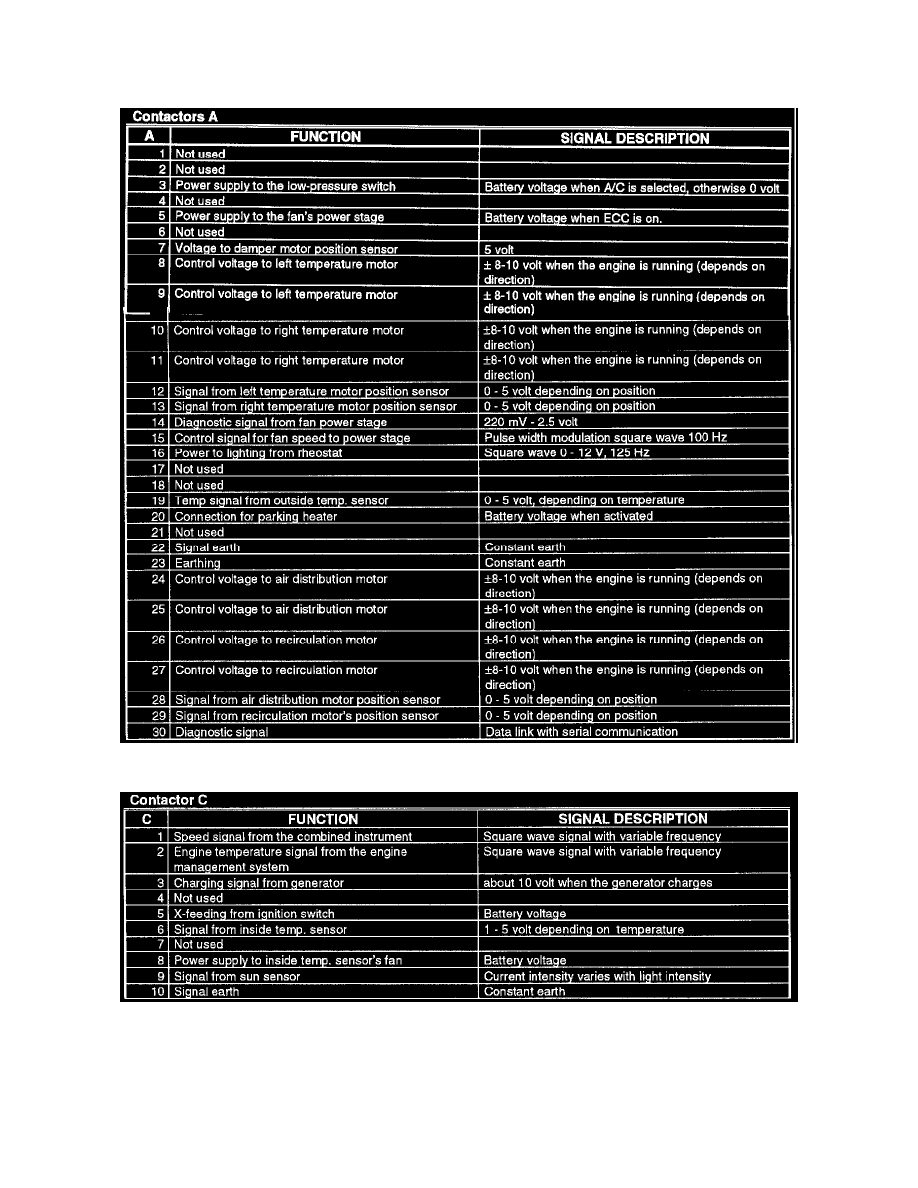

Connector Pin Out:

Contactor A

Contactor C

Diagram Information and Instructions|Page 40426 > < Diagram Information and Instructions|Page 40424
