C70 L5-2.4L Turbo VIN 56 B5244T (2000)
Air Bag Control Module: Service and Repair
SRS control module
Disassembly
Preparations
-
make a note of the anti-theft radio code.
-
ignition off.
-
disconnect the battery negative lead.

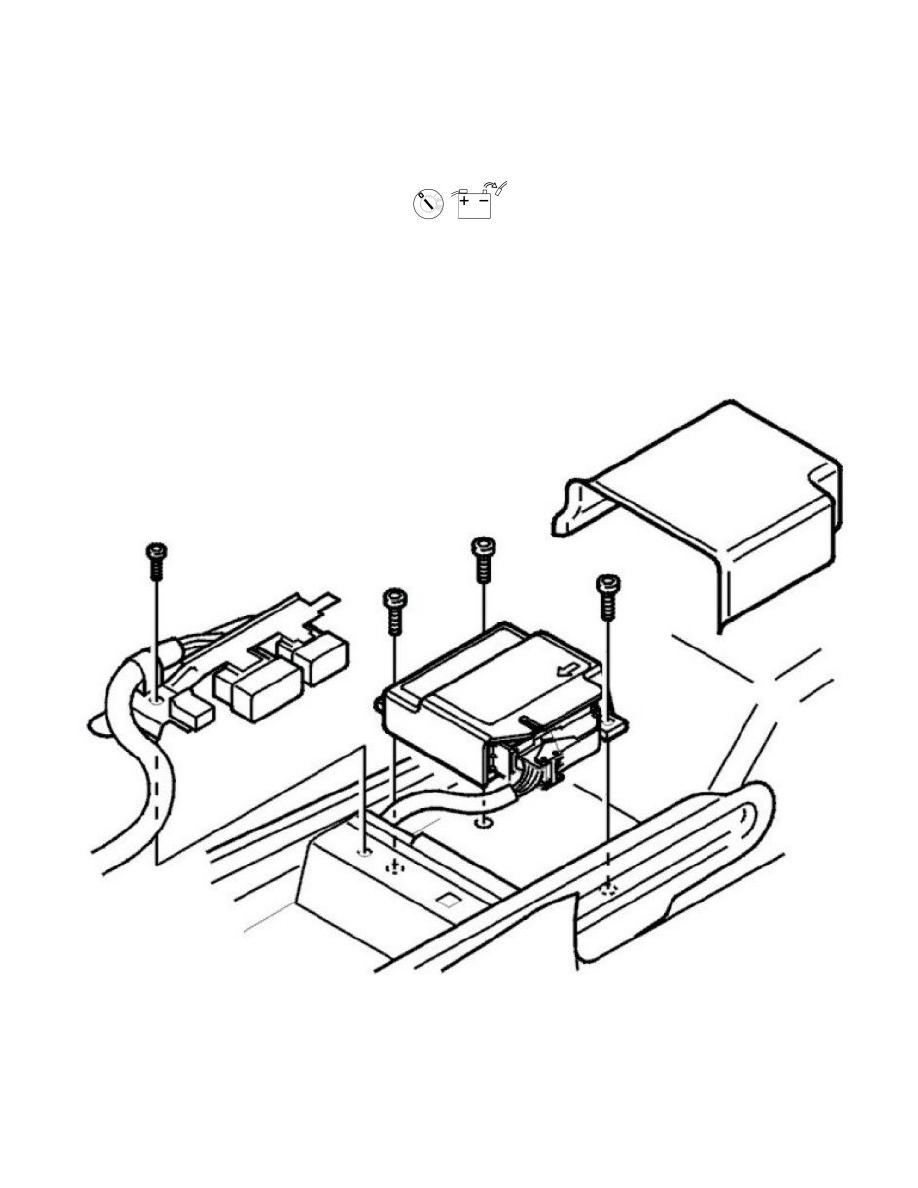

Removing the SRS control module
Warning! The battery must not be connected when the control module is being removed or installed.
Remove:
-
panels and cover. Replacing center console See: Body and Frame/Interior Moulding / Trim/Console/Service and Repair/Replacing Center Console
.
-
the screws and connectors. Replacing center console See: Body and Frame/Interior Moulding / Trim/Console/Service and Repair/Replacing Center
Console.
Note! The C70 Coupe does not have the rear switch on the center console.
