C70 L5-2.4L Turbo VIN 56 B5254T (1998)

Page 1
background image

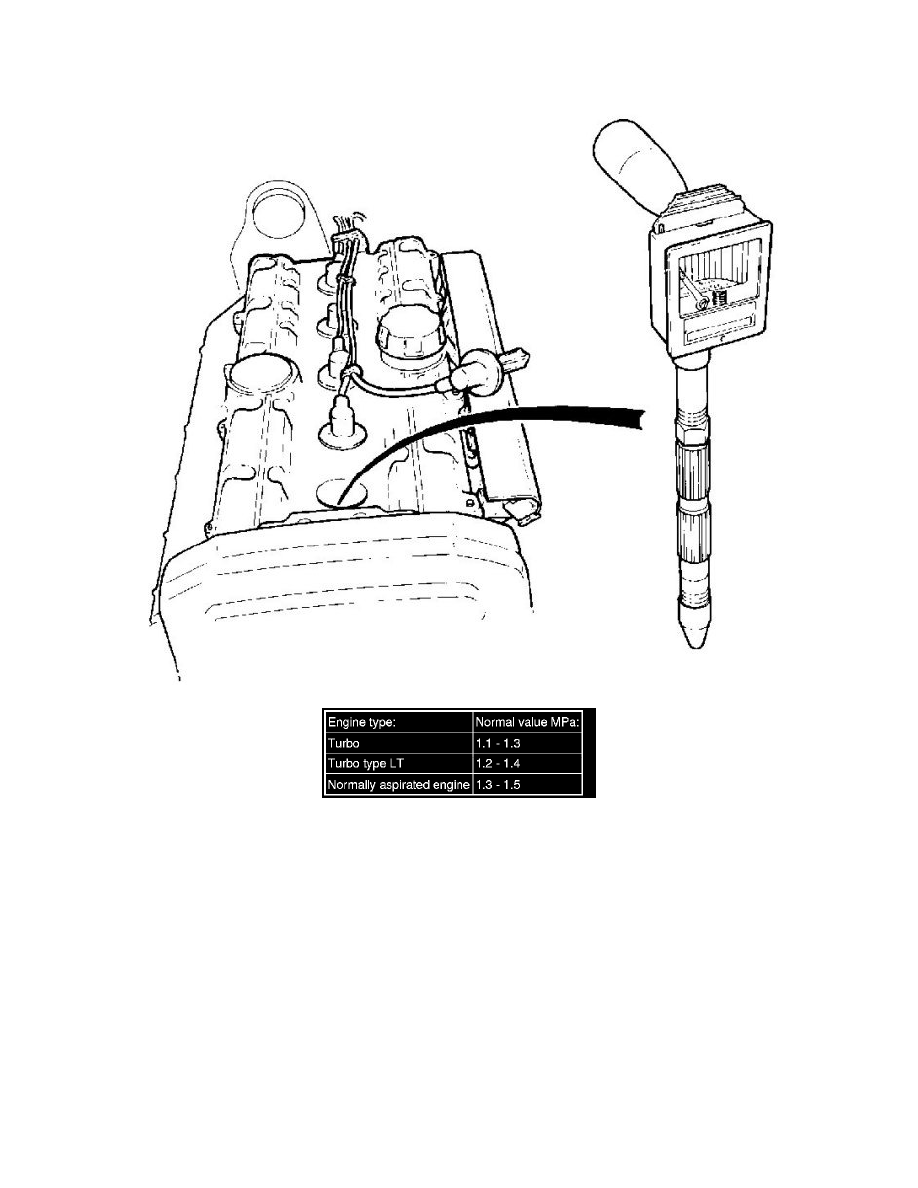

Compression Check: Specifications

Compression



Note! Engine at operating temperature, wide open throttle (WOT) and starter motor turning at 4.2 - 5.0 r/s (250 - 300 rpm).
