Volvo Workshop Service and Repair Manuals > C70 L5-2.4L Turbo VIN 56 B5254T (1998) > Relays and Modules | Relays and Modules - Powertrain Management | Relays and Modules - Computers and Control Systems | Engine Control Module | Component Information | Diagrams | Diagram Information and Instructions | Page 2405

Diagram Information and Instructions|Page 2406 > < Diagram Information and Instructions|Page 2404

Page 8

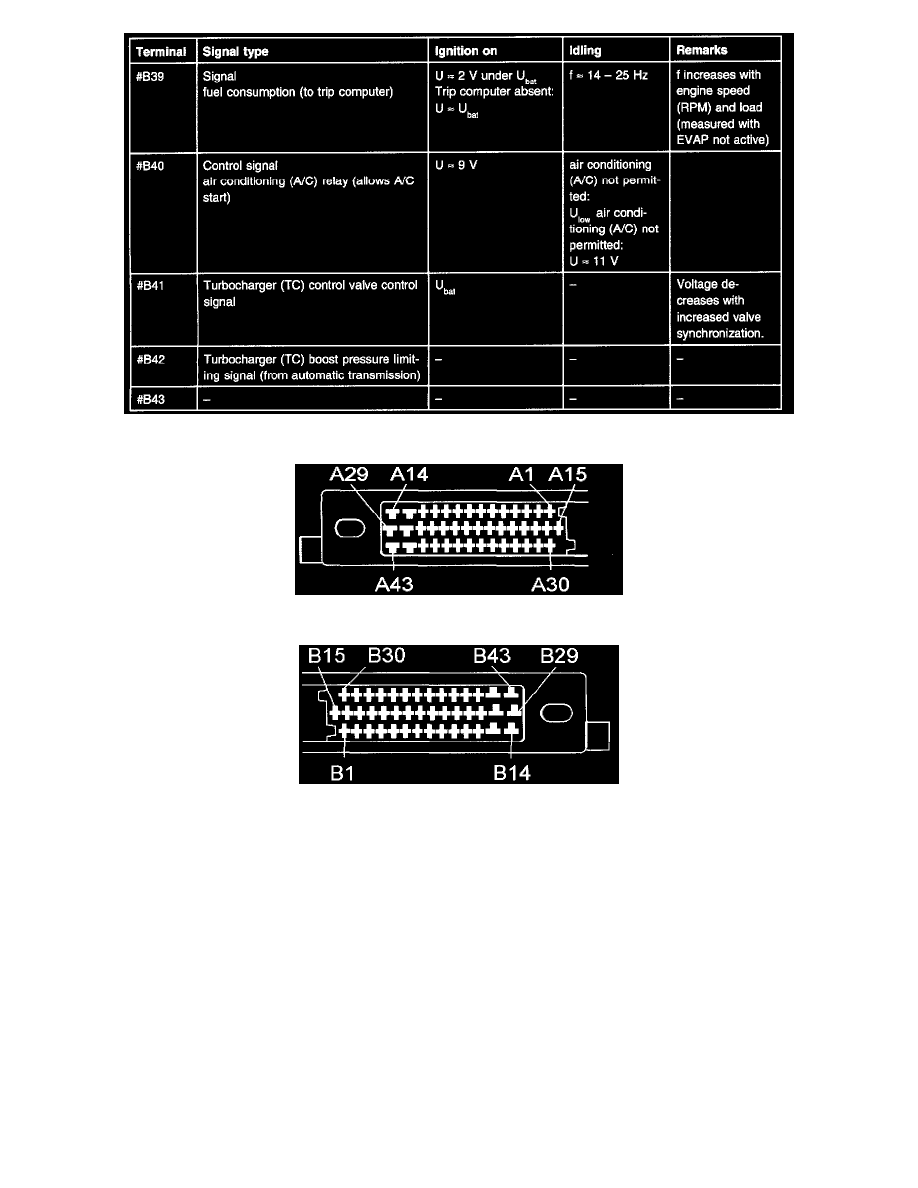

background image

B39-B43

Connector A

Connector B

Relays and Modules
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems
Engine Control Module / Component Information
Diagrams / Diagram Information and Instructions
Page 2405

Diagram Information and Instructions|Page 2406 > < Diagram Information and Instructions|Page 2404
