C70 L5-2.4L Turbo VIN 56 B5254T (1998)
Remove
-
the cigarette lighter.
-
the OBD-II cover.
-

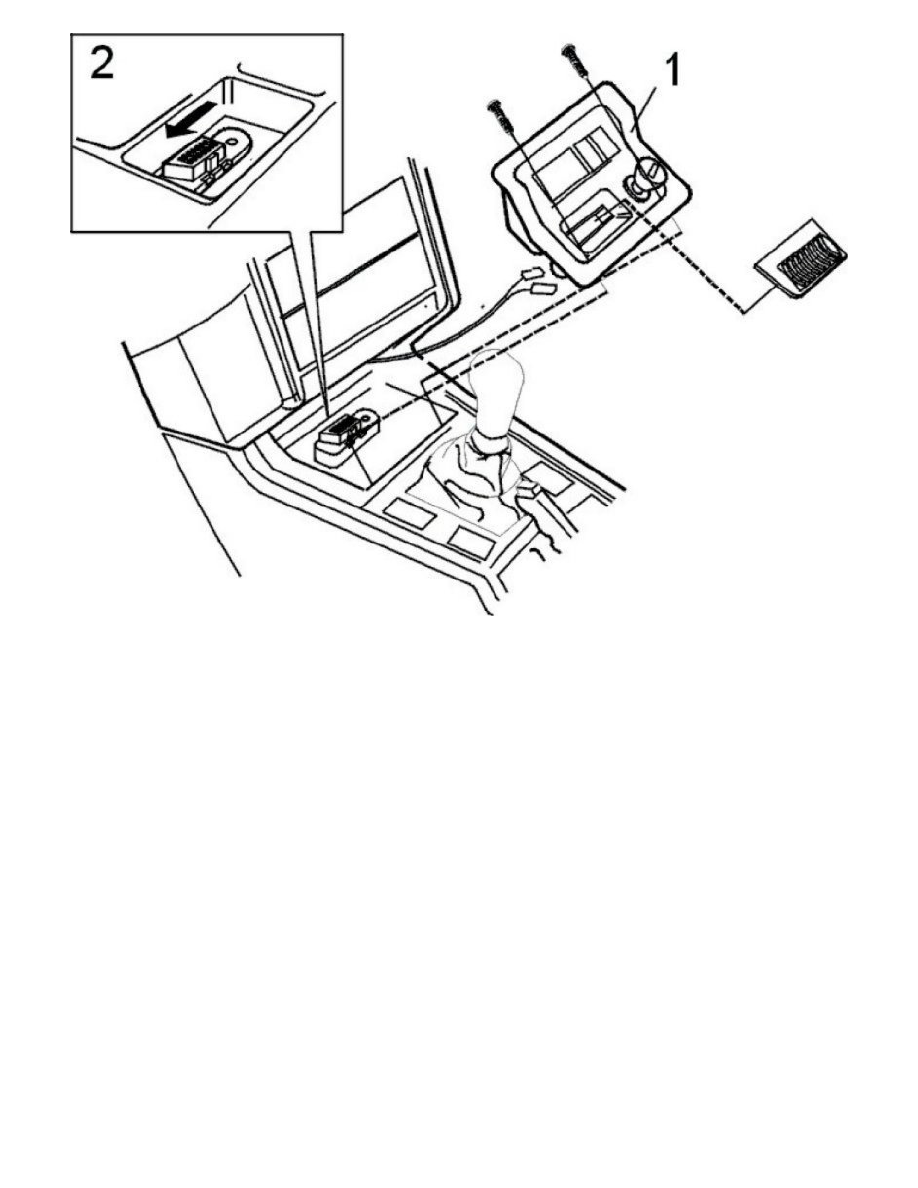

the 2 Torx 20 screws from the cigarette lighter compartment. Lift up the cigarette lighter compartment (1).
-
the 2 connectors from the cigarette lighter socket and bulb holder.
-
the OBD-II connector (2). Slide to one side and press out the connector through the cigarette lighter compartment.
Removing the center console
