C70 L5-2.4L Turbo VIN 56 B5254T (1998)
Warning! The battery must not be connected when the sensor module is removed or installed.
-

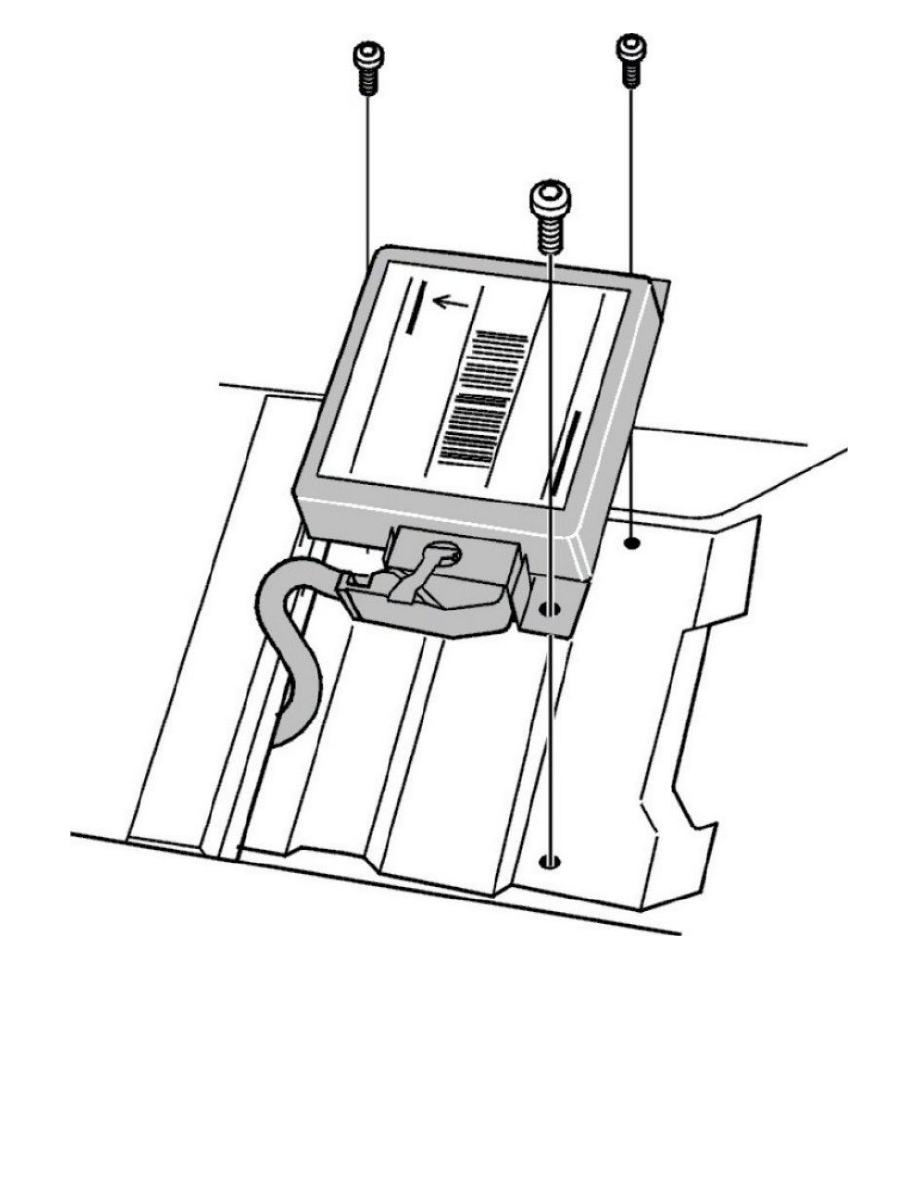

Remove the 3 Torx 30 screws from the sensor module.
-
Lift up the sensor module.
