C70 L5-2.4L Turbo VIN 56 B5254T (1998)
-

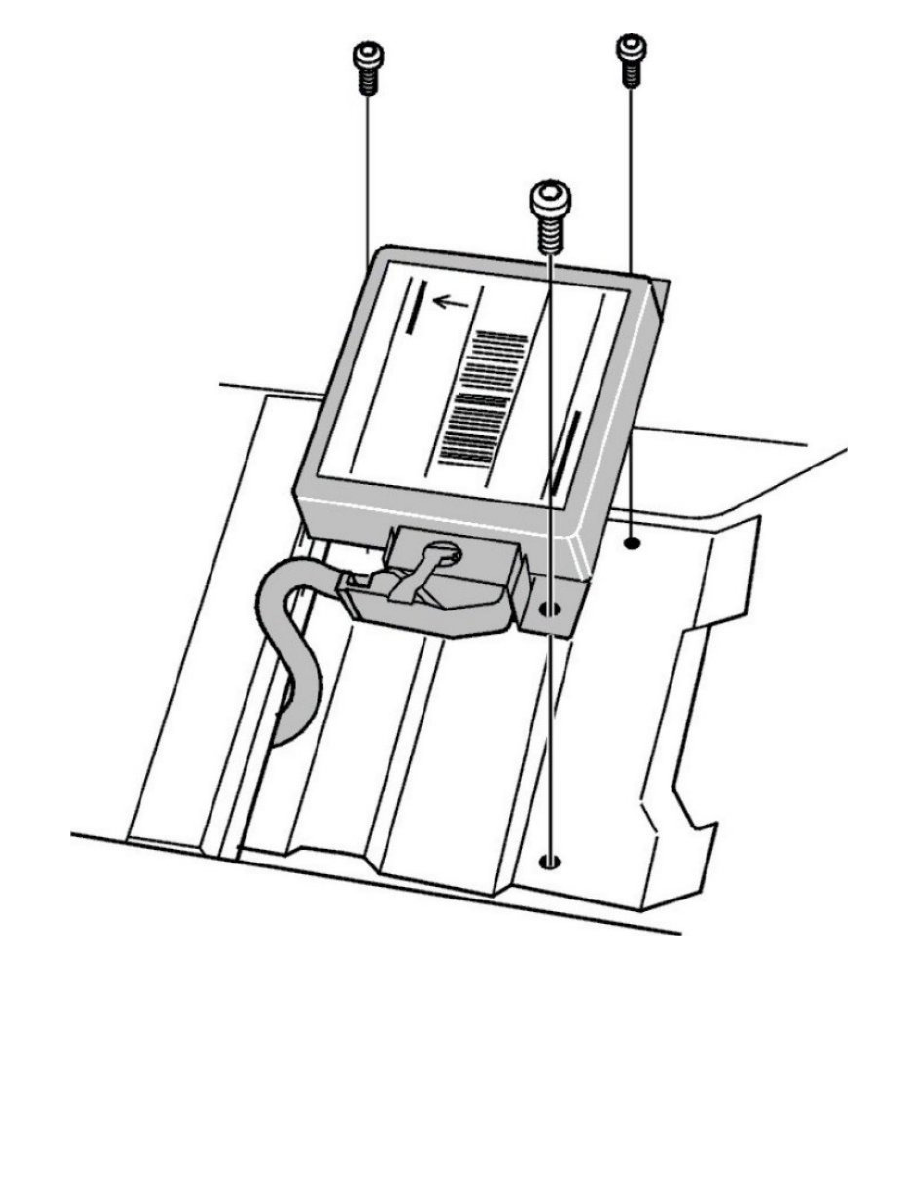

Install the sensor module (3 x Torx 30).
Tightening torque for the sensor module: 10 Nm.
Caution! The screws have pressed sheet metal threads and must be positioned so that the existing thread is not damaged. Take care not to
damage the thread when installing screws.
Note! Use the old screws! When using replacement screws, use a type approved for connection to ground.
Caution! It is important that the sensor module is securely mounted onto the bodywork if it is to operate properly.
The electrical ground connection is direct through the mounting screws. It is therefore very important that the mounting screws are in good contact with
