Brake Fluid Pressure Sensor/Switch: Service and Repair

 Replacing EBD pressure switch

Preparations

Clean around EBD pressure sensor connection to master cylinder.
Put rags under the EBD pressure sensor to protect painted surfaces against brake fluid spillage.
Get a drain bottle and hose to collect brake fluid in.

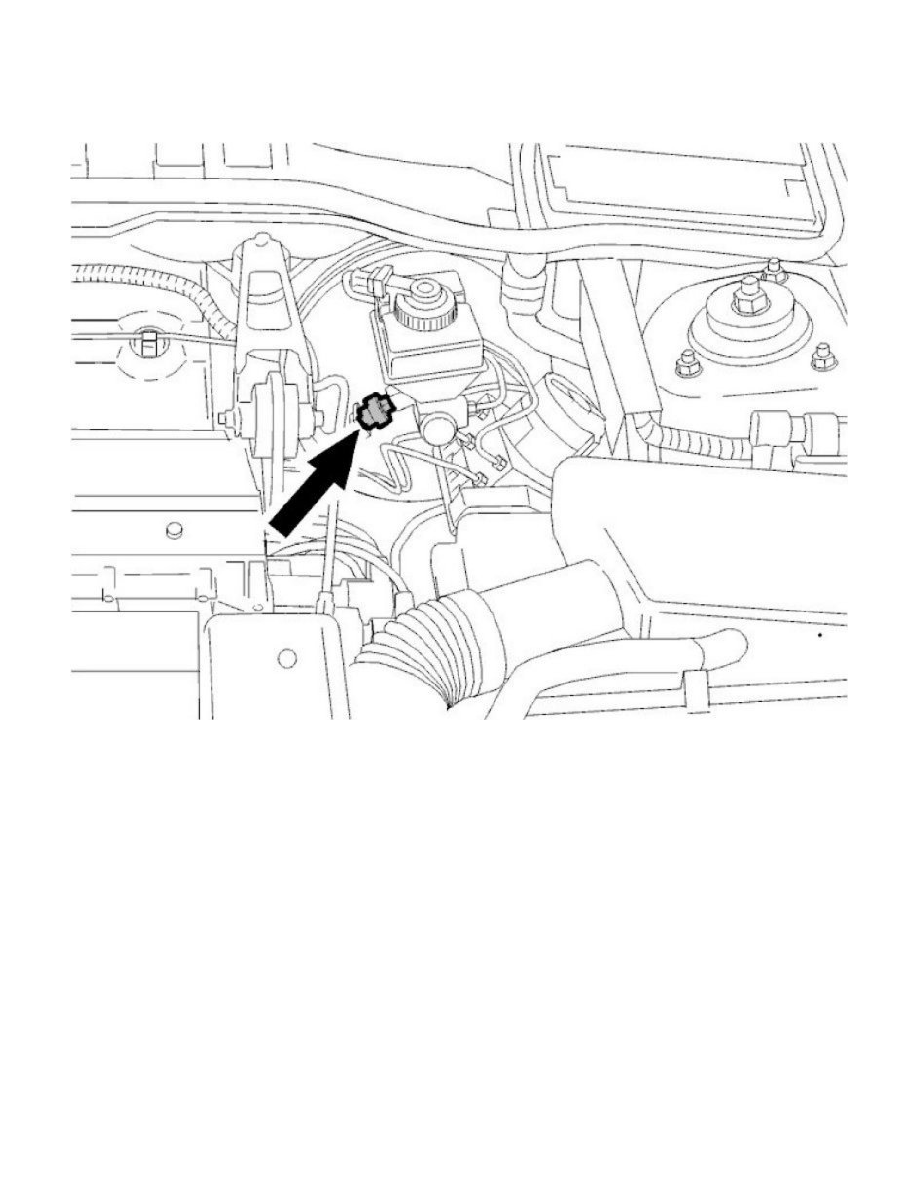

Removing EBD pressure sensor
