C70 L5-2.4L Turbo VIN 56 B5254T (1998)

Page 130
background image

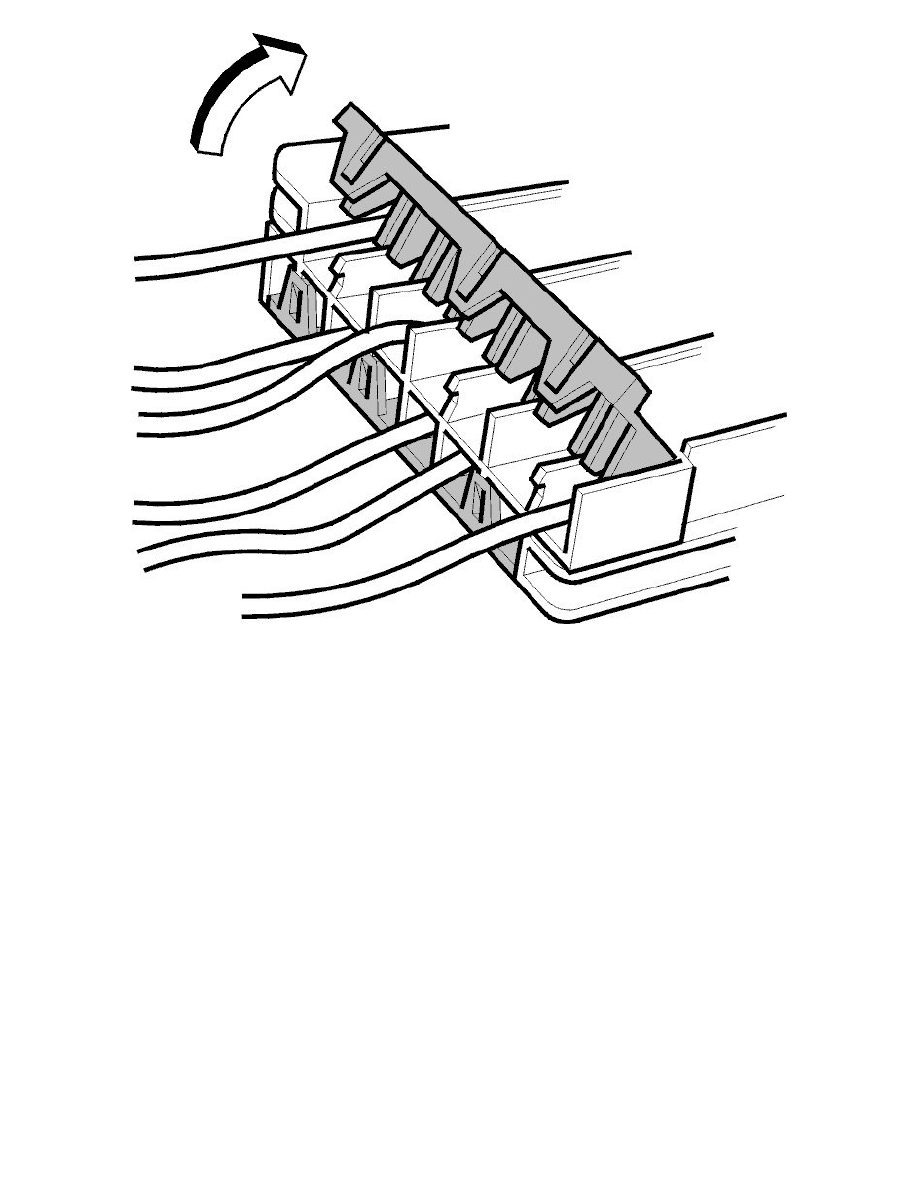

Fold up the secondary lock. If necessary use an electrician's screwdriver.

Primary lock
