C70 L5-2.4L Turbo VIN 56 B5254T (1998)

Page 1
background image

Cabin Temperature Sensor / Switch: Locations

Climate control ECC/MCC/STANDARD

Passenger compartment

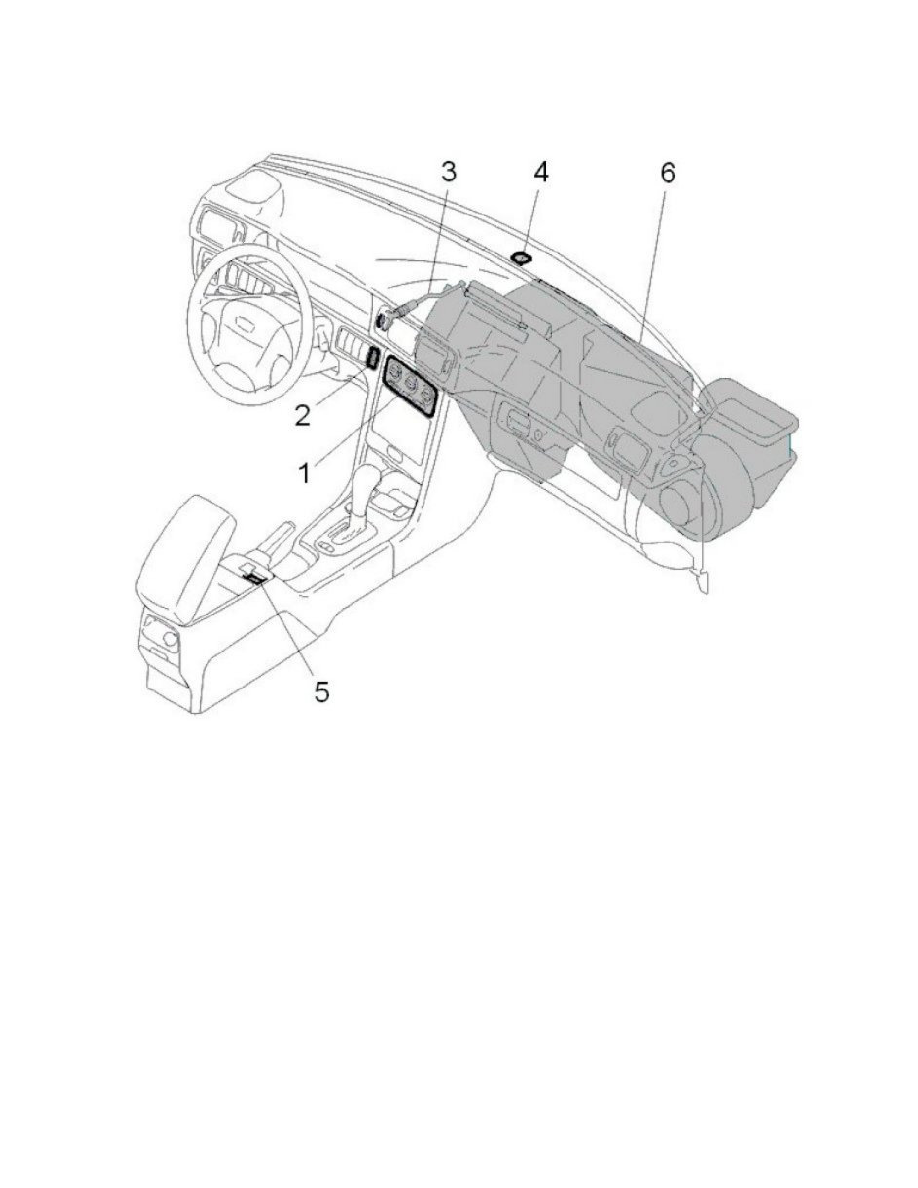

Component Location - Climate Control ECC/MCC/STANDARD (Passenger Compartment)

-

2 Passenger compartment temperature sensor with built-in fan (ECC).
