Transmission Position Switch/Sensor: Adjustments

Checking/adjusting gear-shift position sensor

Special tools:
 999 5475 GAUGE  See: Tools and Equipment/999 5475 Gauge

Preparations

Make sure the gear shift is set to position N.

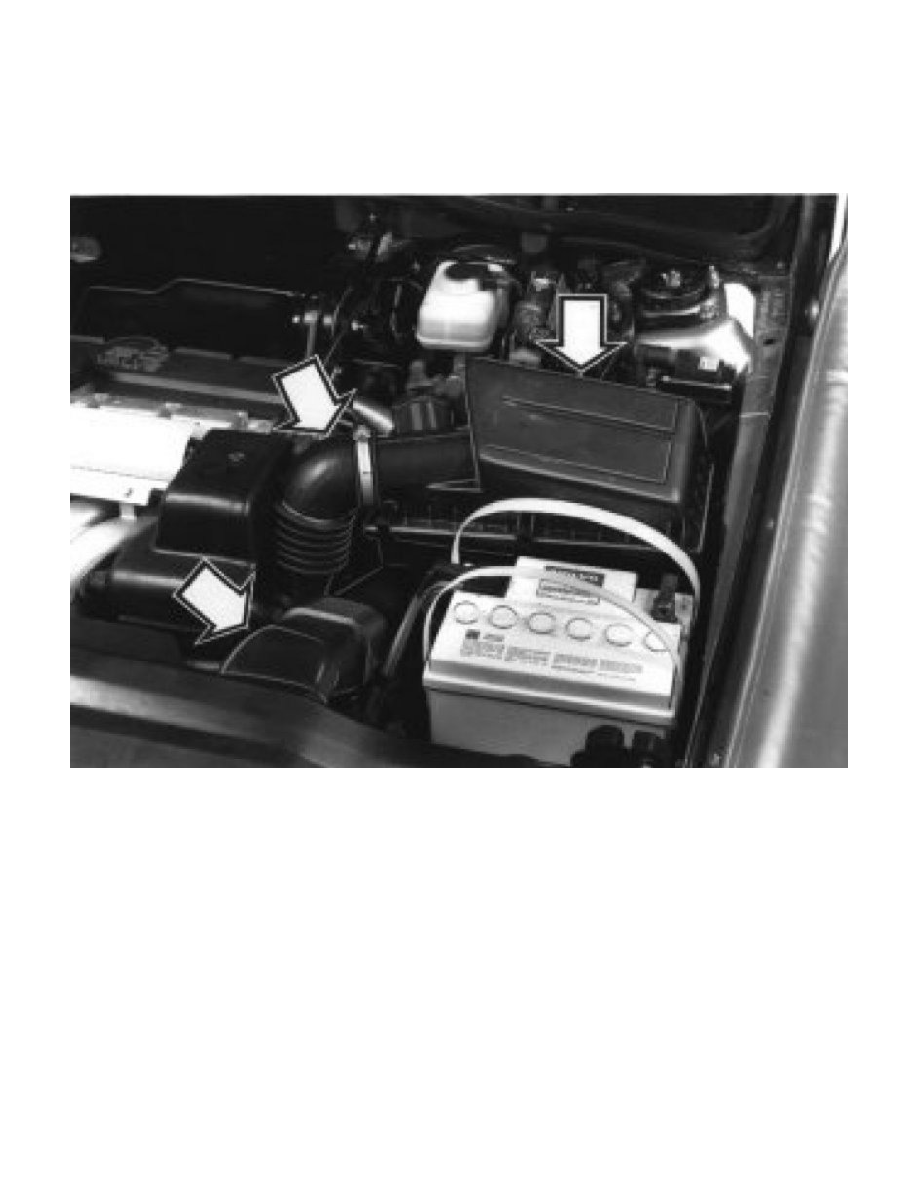

 Remove:

-

The battery

-

The battery shelf

-

Air intake manifold

Checking and adjusting

Check
