C70 L5-2.4L Turbo VIN 63 B5244T7 (2003)
![background image](/volvo/c70/l5-2.4l_turbo_vin_63_b5244t7/Page-596001.png)
Clutch Switch: Specifications

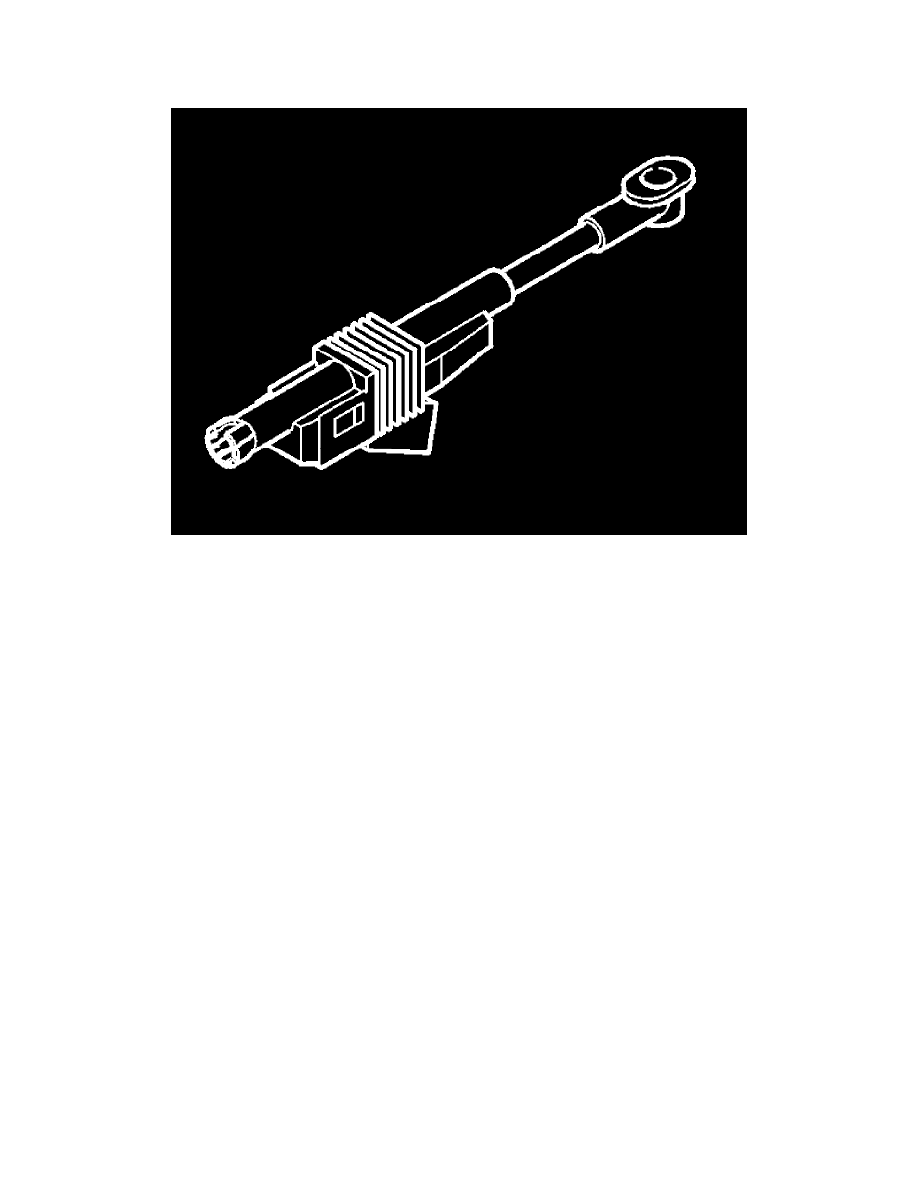

Clutch Pedal Sensor
Self-adjusting.
Position (mm).........................................................................................................................................................................................................R (Ohms)
0.............................................................................................................................................................................................................................1500 - 2500
25...........................................................................................................................................................................................................................1000 - 2000
50.............................................................................................................................................................................................................................750 - 1750
100...........................................................................................................................................................................................................................500 - 1000
