C70 L5-2.4L Turbo VIN 63 B5244T7 (2003)
Strut Mount: Service and Repair
Replacing Front Spring, Spring Strut Mounting, Shock Absorber
Special Tools: 999 5407, 999 5466, 999 5467, 999 5468, 999 5469
-
Remove the wheel
-
Remove anti-roll bar link from spring strut
-
Remove ABS sensor from the stub axle.
-
Remove the ABS sensor cable from the spring strut and brake bracket.
CAUTION:
-
Do not disconnect connector.
-

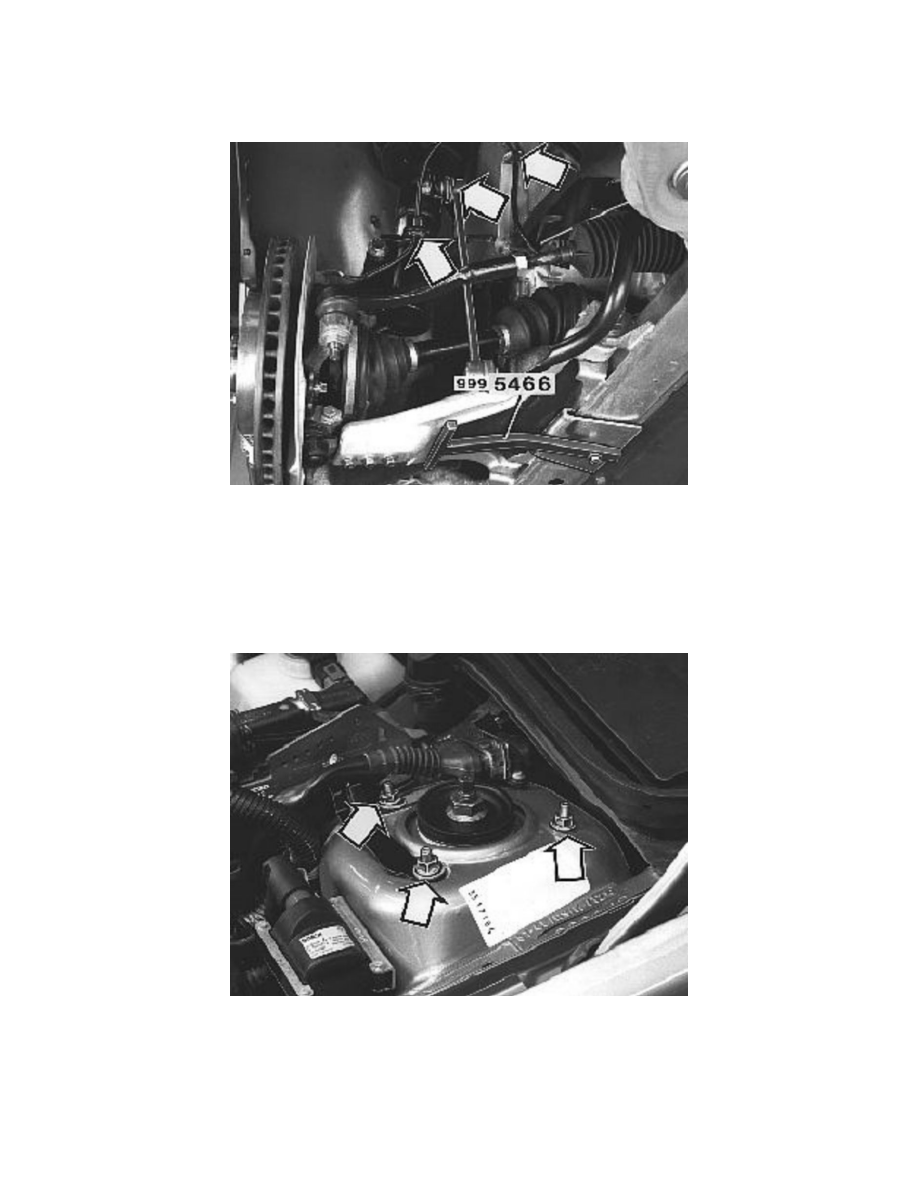

Install on support 999 5466 under the control arm. The support should be used to avoid too large a joint angle at the drive shafts.
-
Remove the three screws holding the spring strut turret mounting in the body work
