C70 Convertible L5-2.3L Turbo VIN 53 B5234T3 (1998)
Seat Cushion: Procedures

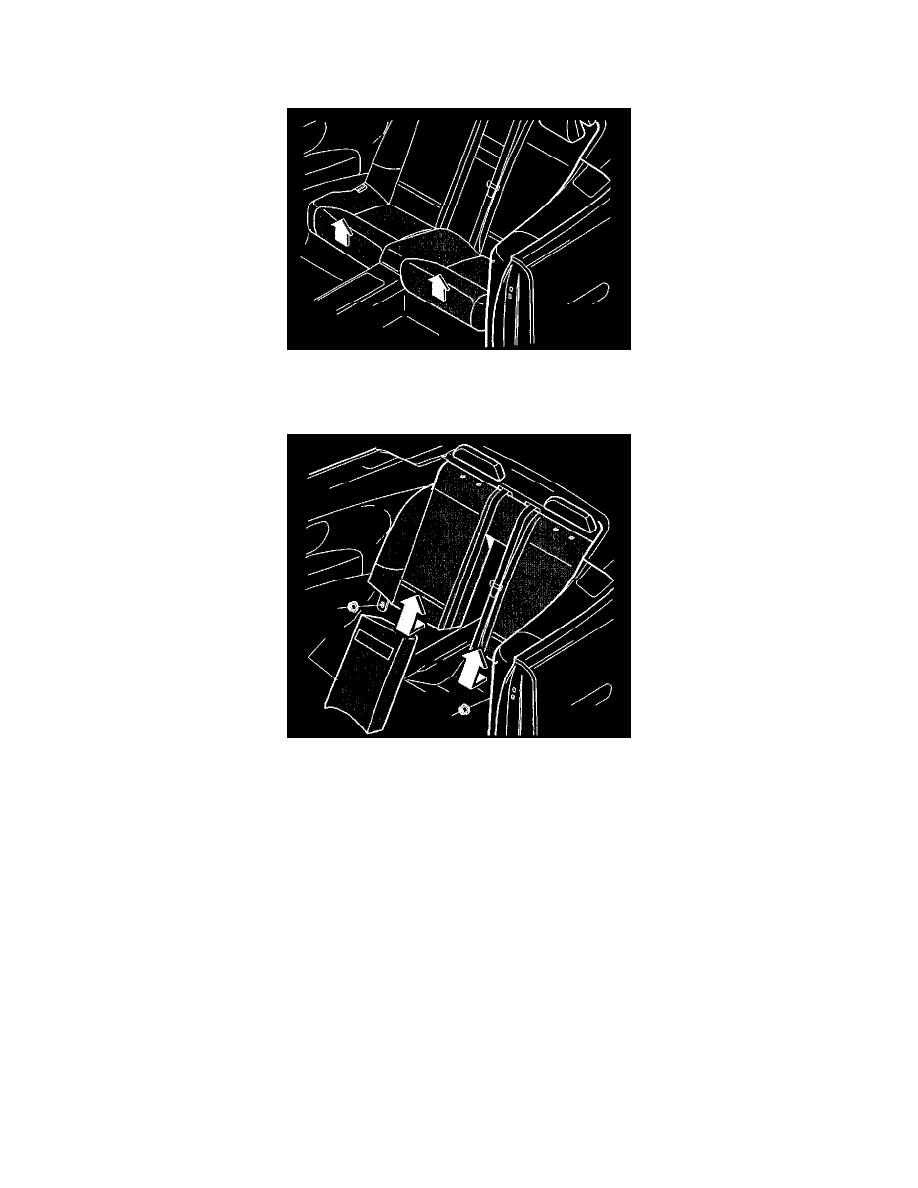

ADA1. Seat Cushion
Pull away the seat cushion at the outside front edges.
ADA2. Back Cushion
Remove:
The arm-rest
The seat cushion, refer to ADA1
2 bolts from the back cushion at the outer bottom edges of the cushion
The head restraint, refer to ADA3.
Lift out the back cushion.
NOTE: Push back at the lower edge of the cushion when it is lifted out. Pull the seat belts around the back cushion and lift the cushion out.
ADA3. Head restraint
