C70 Convertible L5-2.3L Turbo VIN 53 B5234T3 (1998)
Backup Light Bulb: Service and Repair
Tail Light Cluster, Replacement

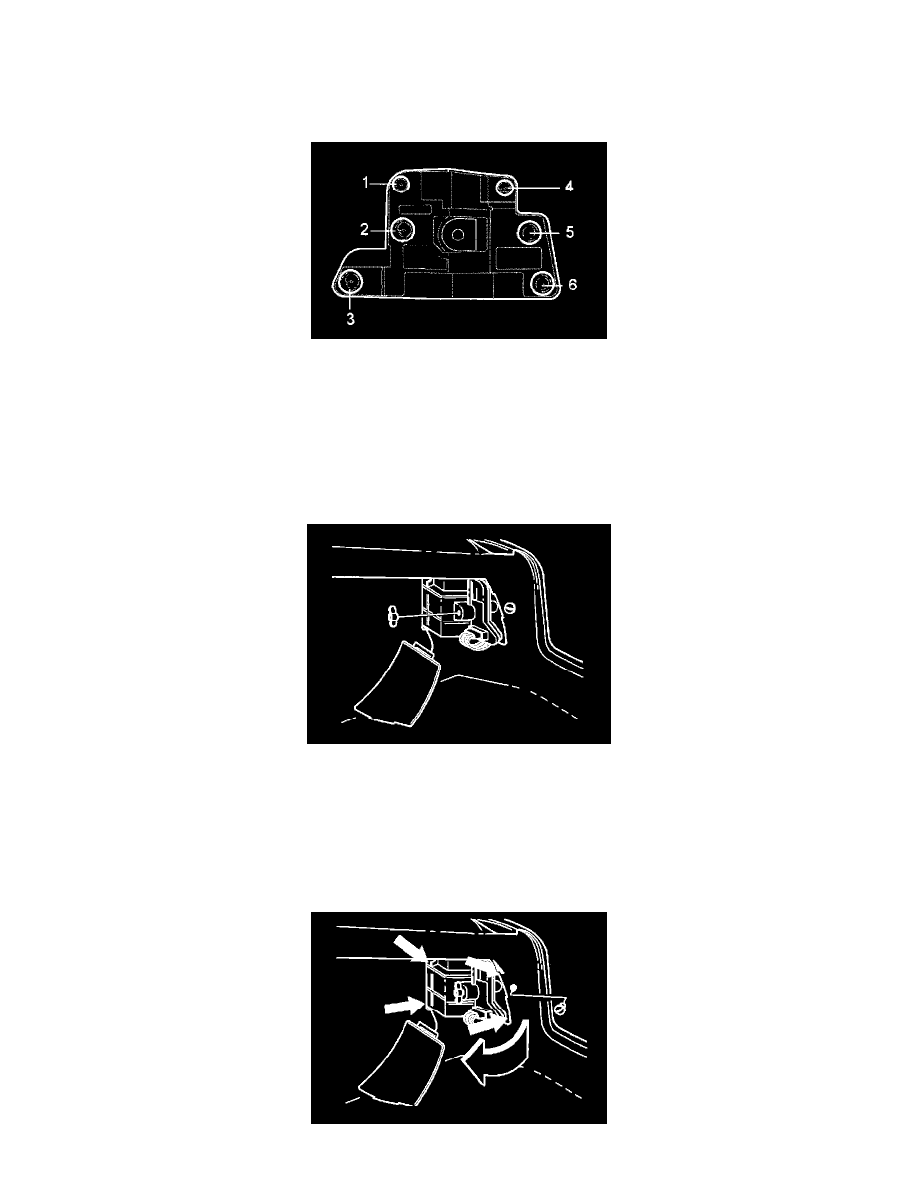

Location of the lights
The illustration shows the locations of the lights on the RH side. The LH side is the same but mirror-reversed.
The lights have the following functions:
-
1+4 = Parking light/Tail light
-
2 = Reversing light
-
3 = Fog light, LH side only (LHD cars)
-
5 = Direction indicator
-
6 = Brake light
Tail light, changing bulbs
Ignition off.
Open the cover in front of the tail light.
Undo the wing nut and take out the lamp holder.
Change the defective bulb.
Fit in reverse order.
* Check that all bulbs/lamps are intact and in working order.
