Seat Belt Buckle: Service and Repair

Seat belt buckle front seat and pyrotechnical seat belt tensioner, replacement

Replacement

Caution! After a collision in which the SRS system has been activated, always replace both seat belt tensioners and buckles, even if there was no
passenger in the passenger seat.


Removing front seat storage compartment

-

Front seat as far forward as possible.

-

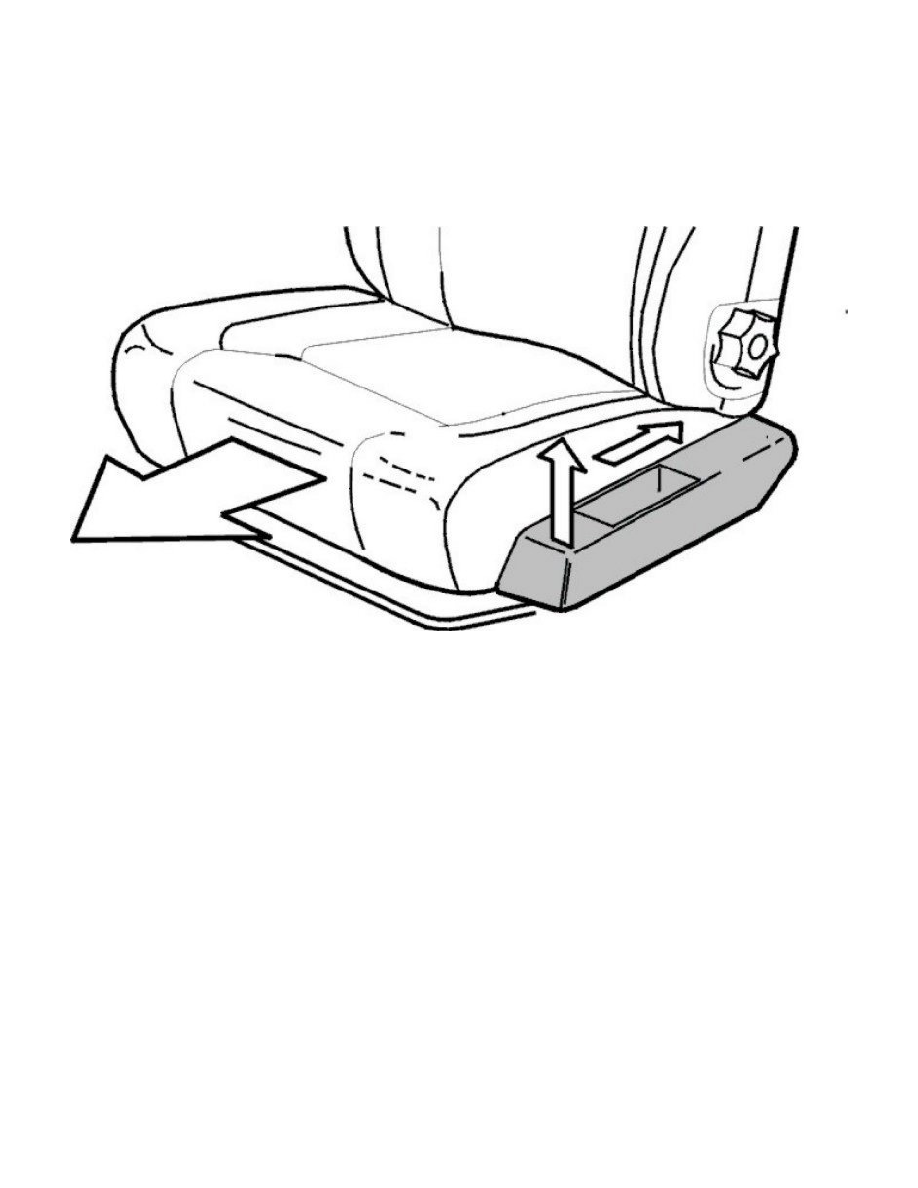

Remove seat storage compartment by lifting up its front edge and pushing it back.

The figure shows a mechanical front seat.
For power seat, disconnect connector from power seat control module. The control module is located under the seat.

Secure the SIPS bag
