C70 Convertible L5-2.3L Turbo VIN 53 B5234T3 (1998)
To set the rear wheel toe-in, see Checking and adjusting the alignment of the rear wheels See: Checking and Adjusting the Alignment of the Rear
Wheels
Toe-in
Correct value:
0.33° ± 0.1° measured over both wheels.

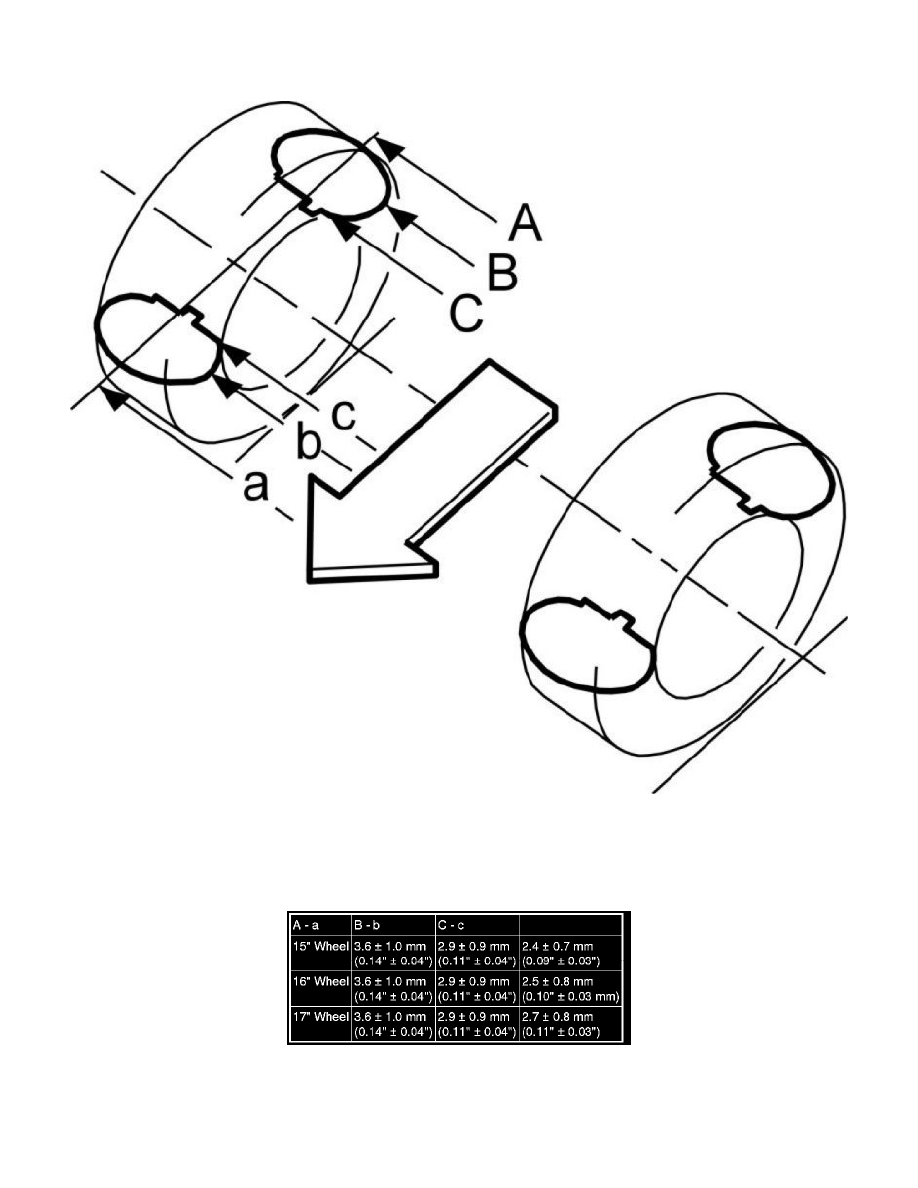

Measurements are taken at the height of the hub as an angular measurement or as the difference in mm between the front and rear edges of the wheel at
points A, B, or C (tread of the tire, inner shoulder and flare of the rim, respectively).
Example. The measurement at A must be
3.6 ± 1 mm greater than at a.
Adjusting toe-in
