Front Door Exterior Handle: Service and Repair

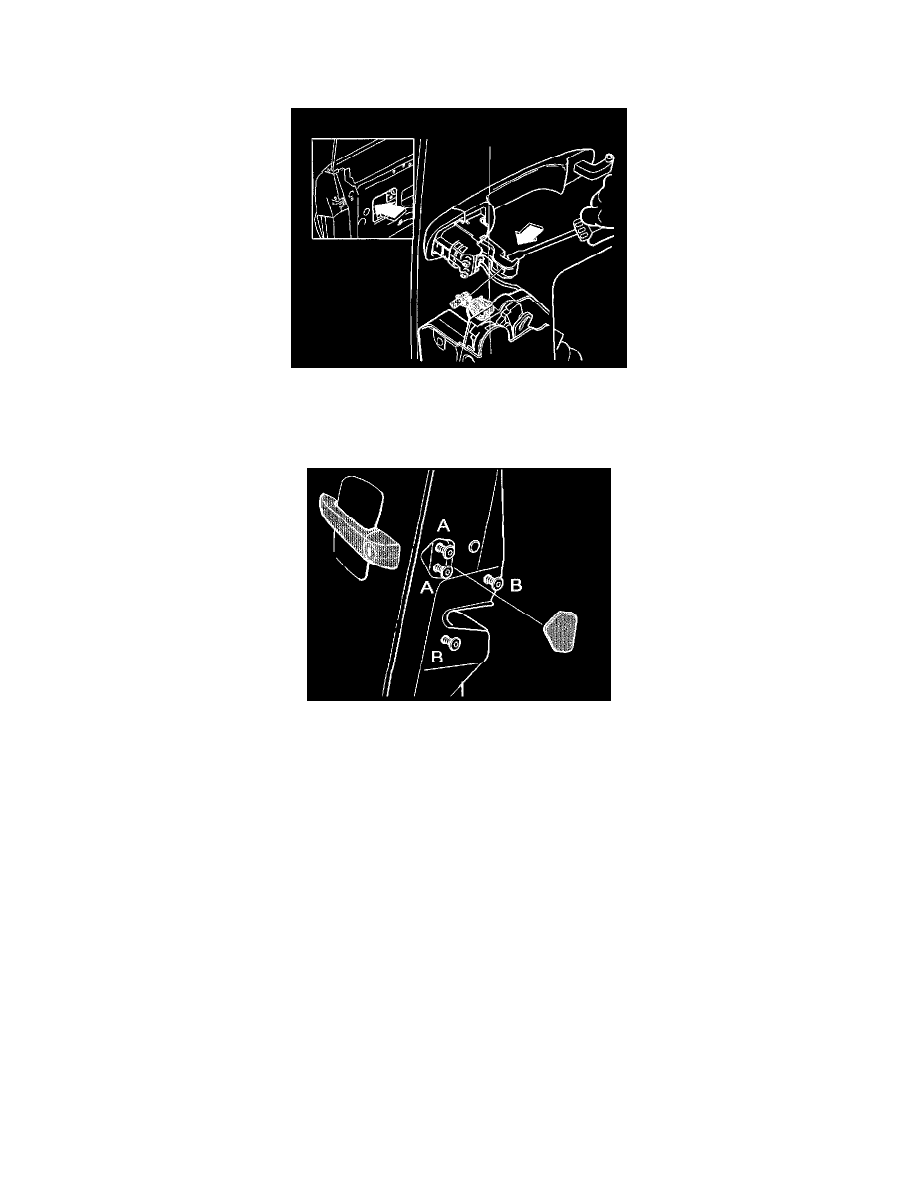

ABA4. Door Handle:

Remove the clip between the handle and lock unit using a screwdriver. Press as illustrated.

Installing:
Press clip into place in the handle with your fingers.

Screws (A) are for the handle.
Screws (B) are for the lock unit.
