Roll Bar Control Module: Service and Repair

Replacing the Roll-over Protection System (ROPS) module

Disassembly

Preparations

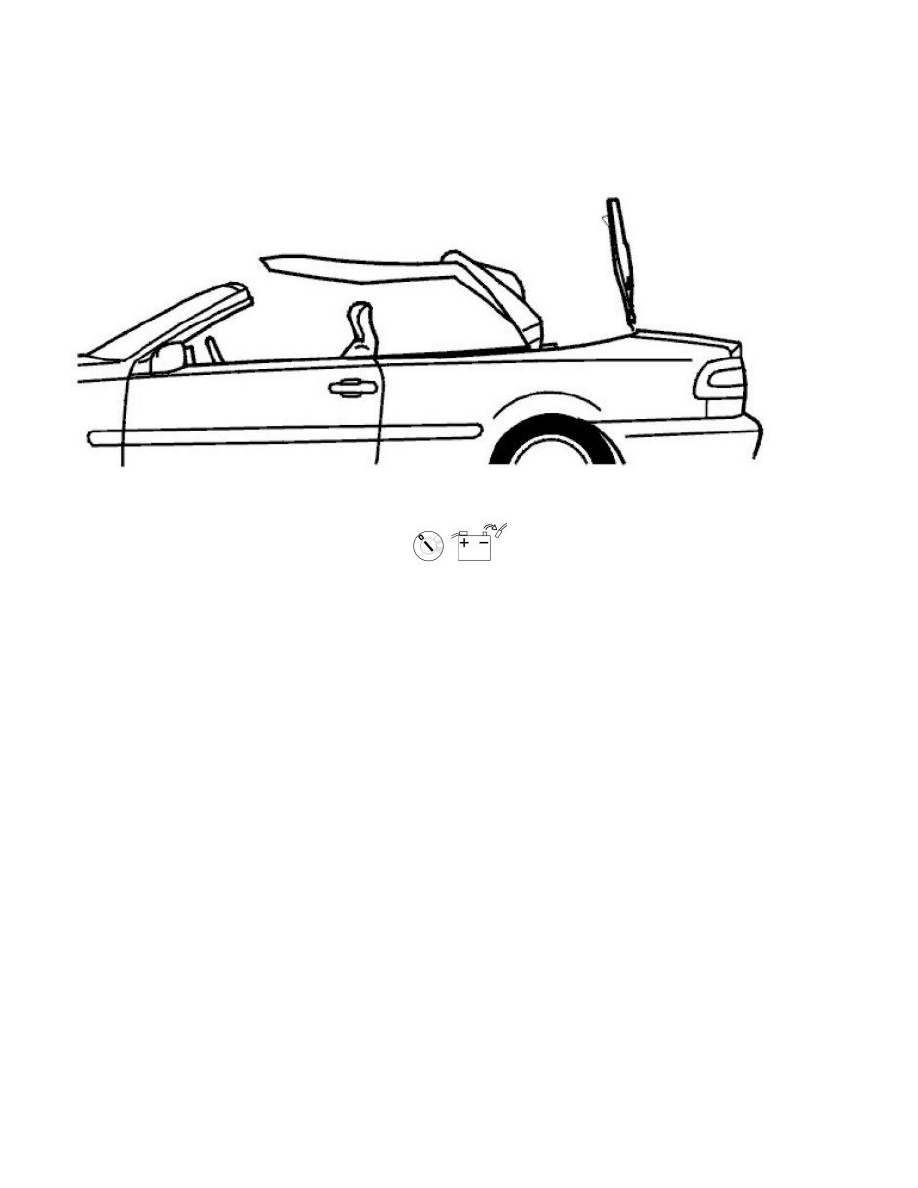

Set the soft top roof in the position illustrated.

make a note of the anti-theft radio code.
ignition off.
disconnect the battery negative lead.

Removing the connector for the ROPS control module
