C70 Convertible L5-2.4L Turbo VIN 56 B5244T (2000)
Remove:
-
the roll-over bar cassette according to Replacing the roll-over bar cassette See: Service and Repair/Removal and Replacement.
-
the connector for the ROPS control module according to Removing the connector for the ROPS control module.
-

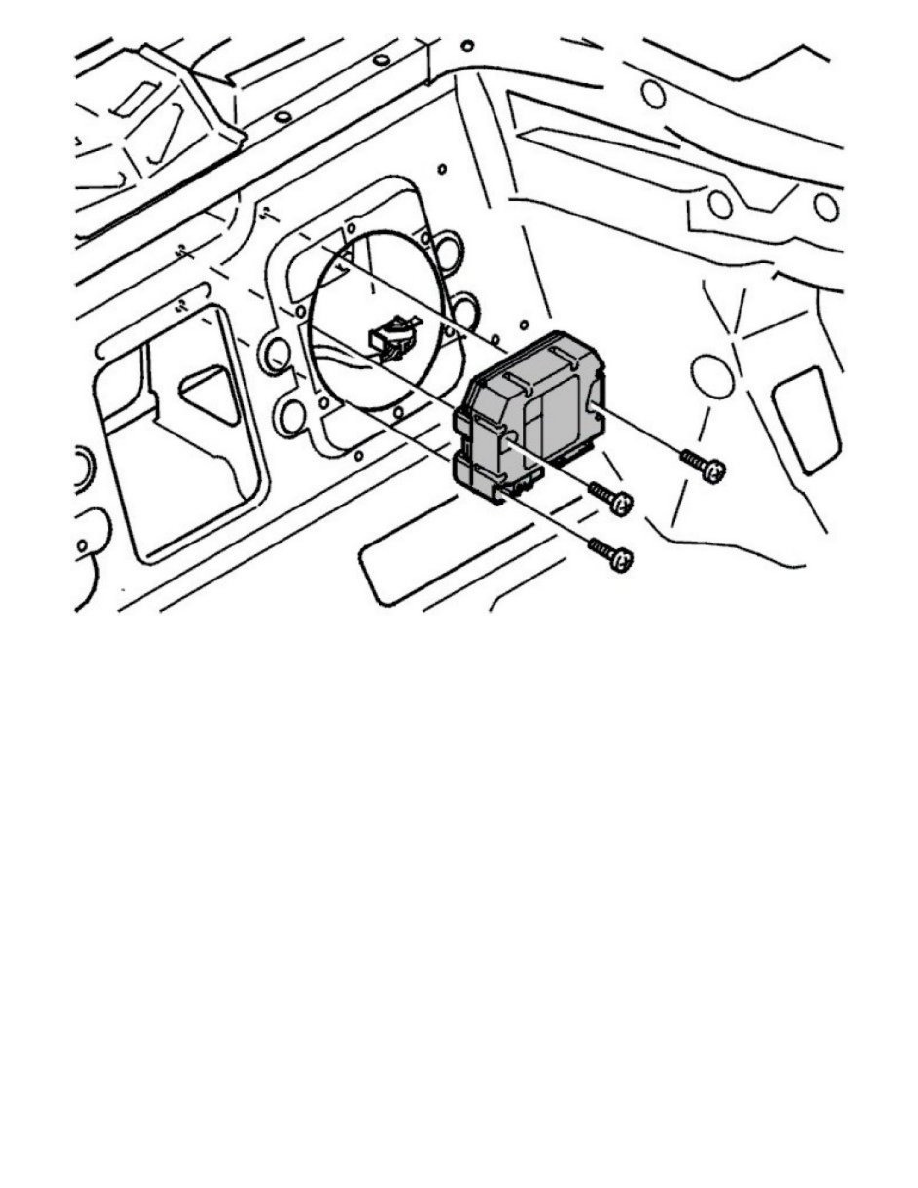

3 screws for the control module.
Lift out the control module.
Reassembly
Installing the ROPS control module and connector
