C70 Convertible L5-24L Turbo HVAC Control Module Diagrams

Page 1
background image

Control Module HVAC: Testing and Inspection

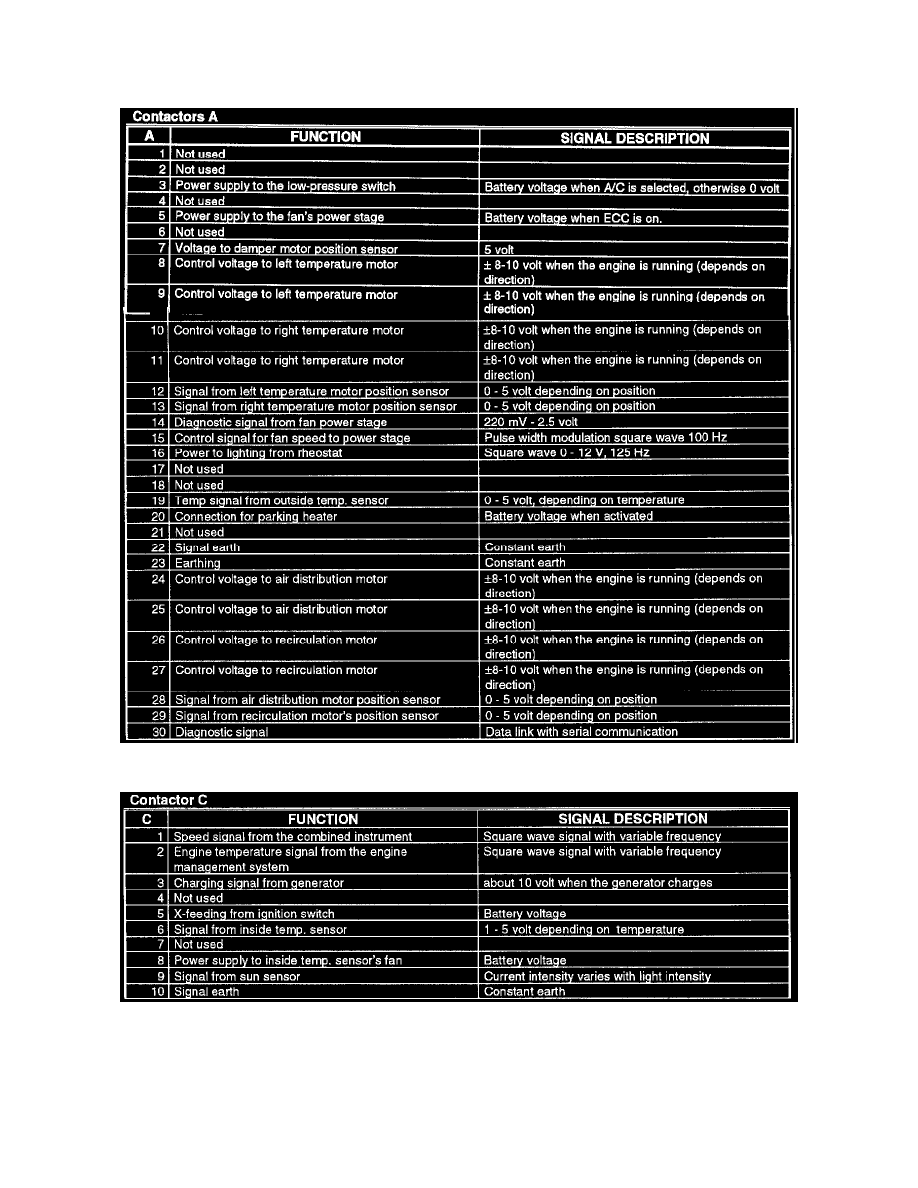

Connector Pin Out:

Contactor A

Contactor C
