C70 Convertible L5-2.4L Turbo VIN 56 B5244T (2000)
Fuel Pressure Pulsation Damper: Procedures
INJECTORS / PULSATION DAMPERS, REPLACING

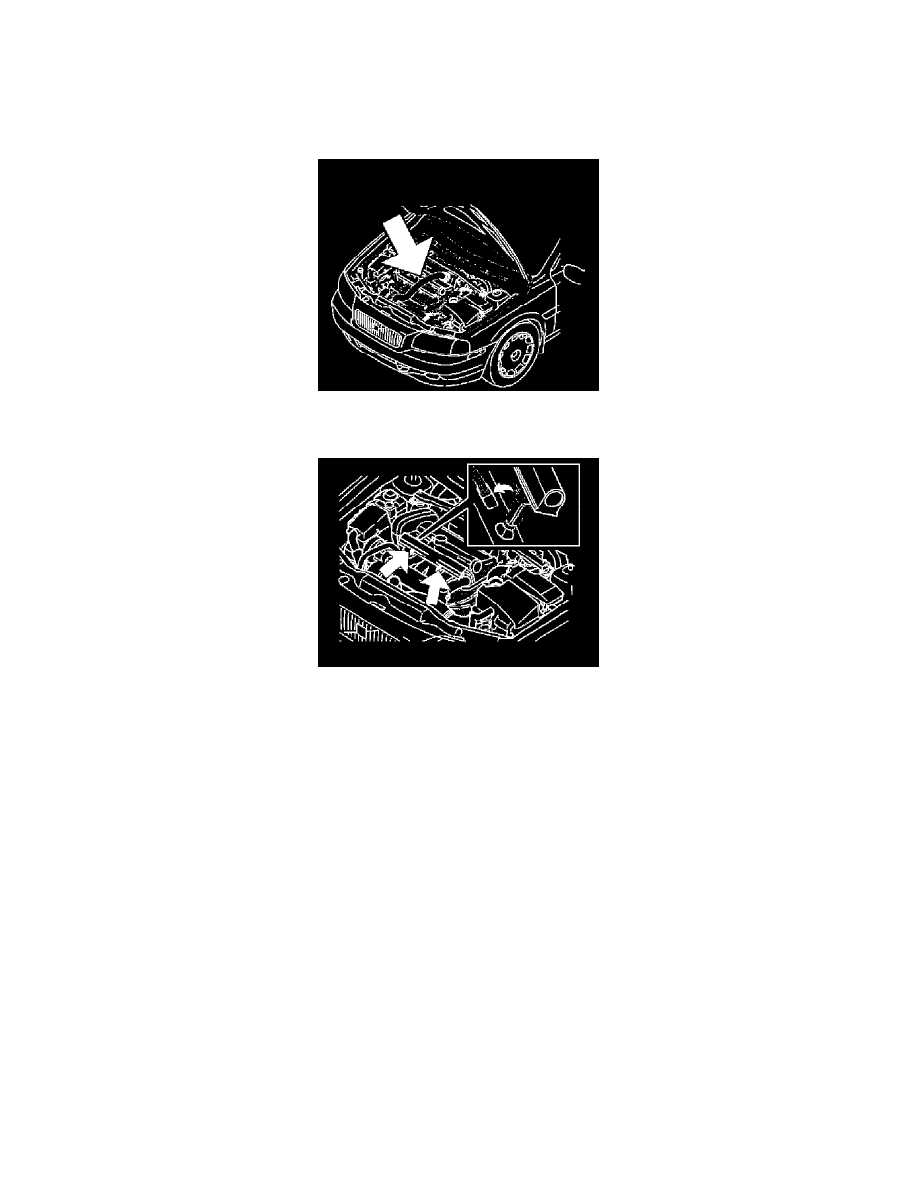

Preparation
Empty the fuel injection system.
Remove the charge air pipe over the engine. Seal the openings
Remove the cover over the fuel rail.
Disconnect the injector connectors.
Blow clean around the injectors.
Remove the mounting screws from the fuel rail.
Separate the fuel line quick-release connector. Use tool 951 2666.
Spray universal oil or similar around the injector terminals on the intake manifold.
Gently work the fuel rail and injectors loose.
Note! Handle the injectors carefully to avoid damage to the nozzles and needles.
Removing injectors
Remove
-
the screws holding the mounting rail to the fuel rail
-
the mounting rail
-
the injector.
Removing the pulsation damper
Remove
-
the screws holding the mounting rail to the fuel rail
-
the mounting rail
-
the pulsation damper.
Installing injectors
Lubricate the injector O-ring with a thin layer of petroleum jelly.
Install the new injector.
Installing the pulsation damper
