Air Bag: Service and Repair
Airbag Steering Wheel Module, Steering Wheel and Contact Reel Replacement

Airbag steering wheel module, steering wheel and contact reel

Disassembly

Special tools:
 998 8695 TEST DEVICE  See: Tools and Equipment/998 8695 Test Device

Preparations

-

make a note of the anti-theft radio code.

-

ignition off.

-

disconnect the battery negative lead.

Warning! During assembly, the ignition must be in position II. Then reconnect the battery negative lead, according to  Conclusion. Ensure that
nobody is in the car when the battery is being connected.

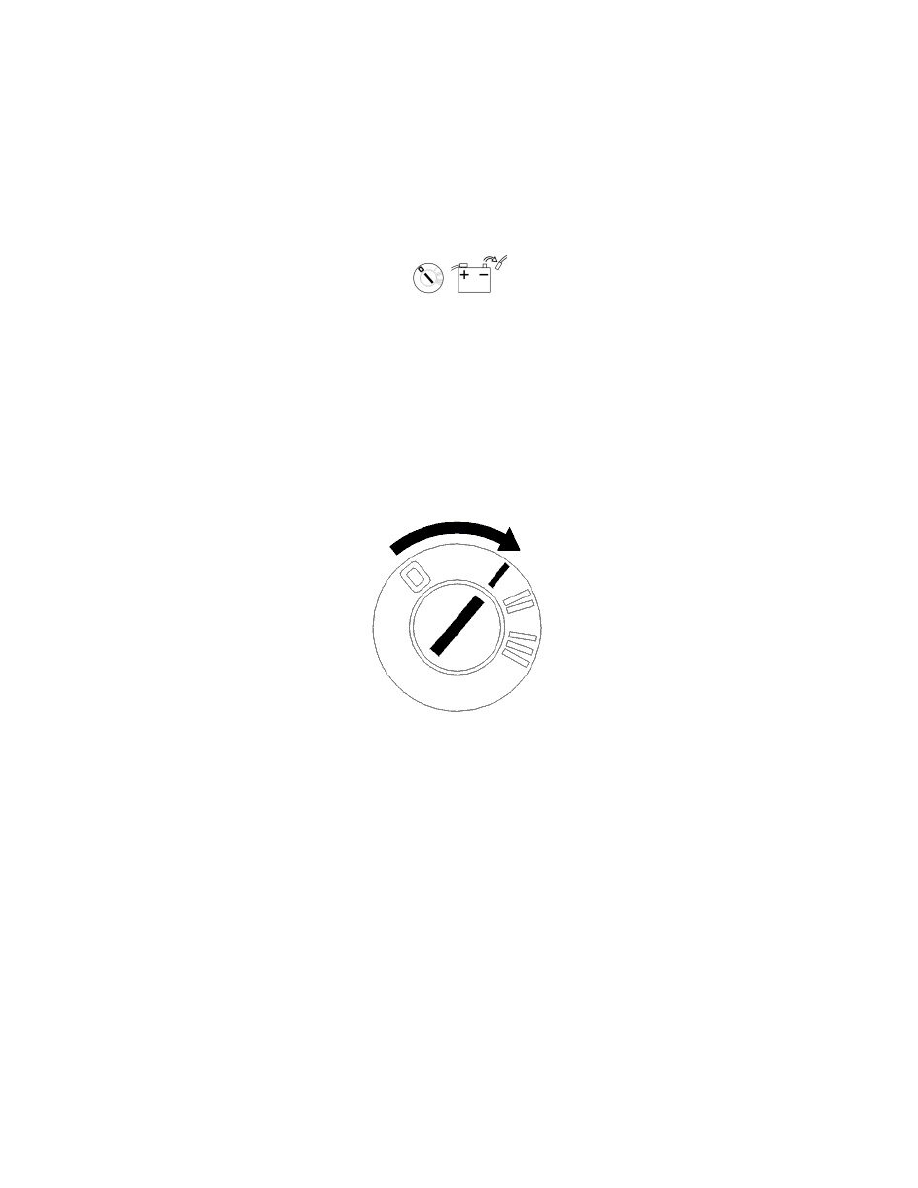

Ignition in position I

Warning! The battery must not be connected when the SRS ignition cable connector is being removed or installed.

Ignition switch to position I so that the steering wheel lock is disengaged.

 Slacken off steering wheel screws
