C70 Coupe L5-2.3L Turbo VIN 53 B5234T3 (2001)

Air Door Actuator / Motor: Adjustments
Setting Damper Motors, Damper for Self-Adjustment
Setting damper motors, damper for self-adjustment
Setting
Connect the damper motor switch.
Ignition on.
Start the blower fan motor.
Move the damper motor to a limit position using the button for temperature control.

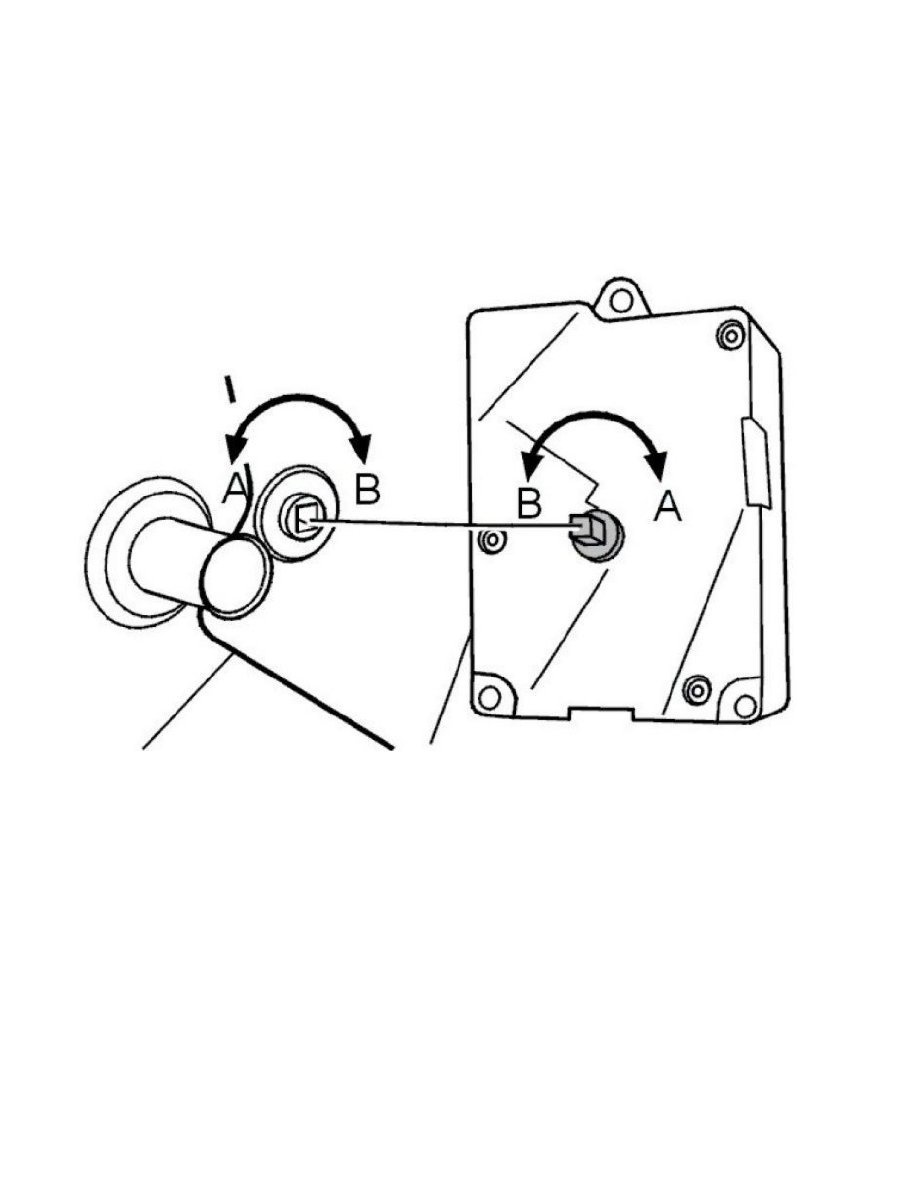

Turn the damper on the climate control unit to the corresponding position using a screwdriver or similar that can be inserted in the hole. See the
illustration.
Install the motor according to Replacing damper motors See: Service and Repair/Removal and Replacement
Carry out self-adjustment of the damper motor end positions. This is carried out via VIDA communication.
