S40 T5 L5-2.5L Turbo VIN 68 B5254T3 (2006)
Seals and Gaskets: Service and Repair
Sealing Ring, Torque Converter
Sealing ring, torque converter
Special tools:
999 5069 EXTRACTOR See: Tools and Equipment/999 5069 Extractor
999 5117 PUNCH See: Tools and Equipment/999 5117 Punch
Note! As the illustrations in this service information are used for different model years and / or models, some variation may occur. However,
the essential information is always correct.
Removal
Removing the transmission
Remove the transmission. See: Transmission, removing See: Service and Repair/Removal and Replacement/Transmission, Removing Transmission,
removing See: Service and Repair/Removal and Replacement/Transmission, Removing.
Removing the torque converter
Pull the torque converter straight out of the transmission. Check the torque converter throat for damage.

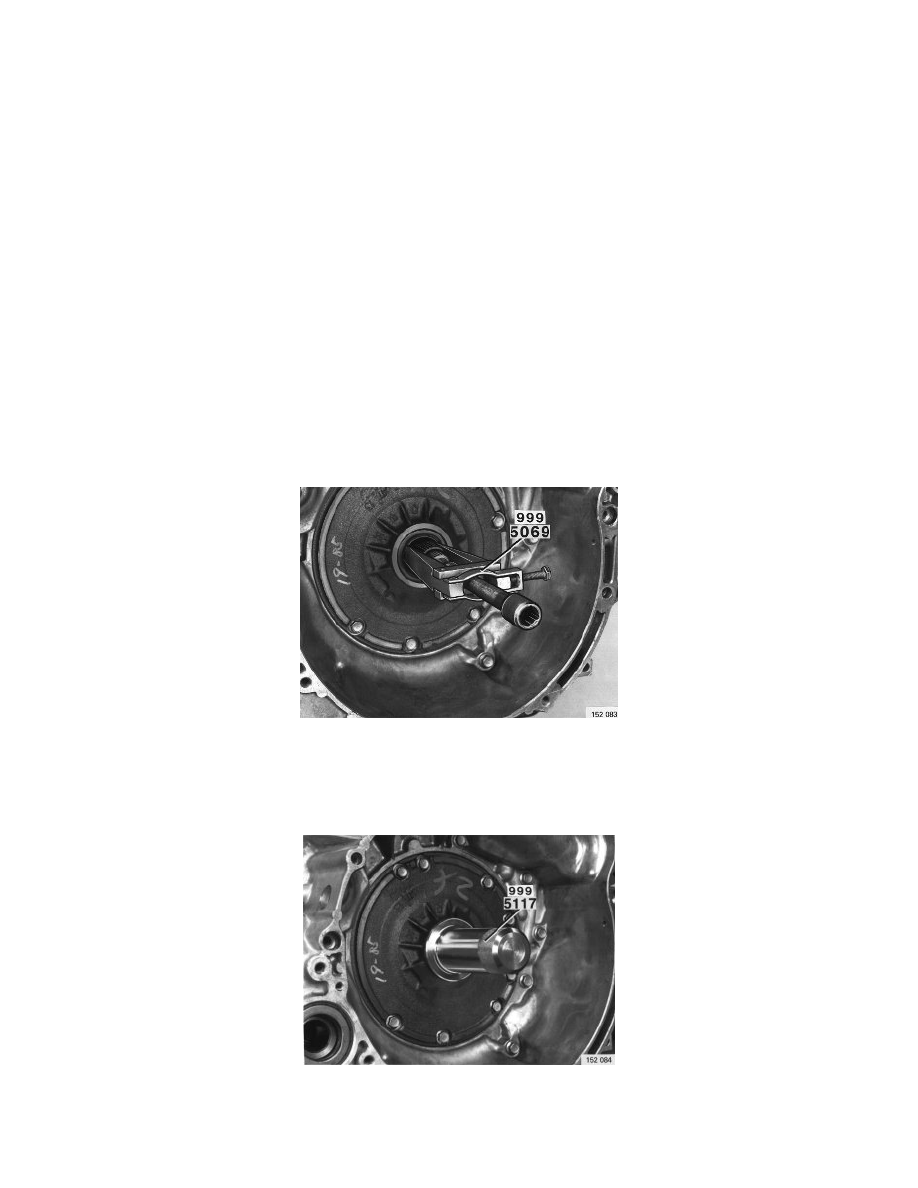

Removing the sealing ring from the oil pump
Use extractor: 999 5069 EXTRACTOR See: Tools and Equipment/999 5069 Extractor.
Installation
Installing a new sealing ring on the oil pump
Use: 999 5117 PUNCH See: Tools and Equipment/999 5117 Punch.
Installing the torque converter
