S60 L5-2.3L Turbo VIN 53 B5234T3 (2004)
Fuel Tank Pressure Sensor: Service and Repair
Pressure sensor, fuel tank, replacing
Removal

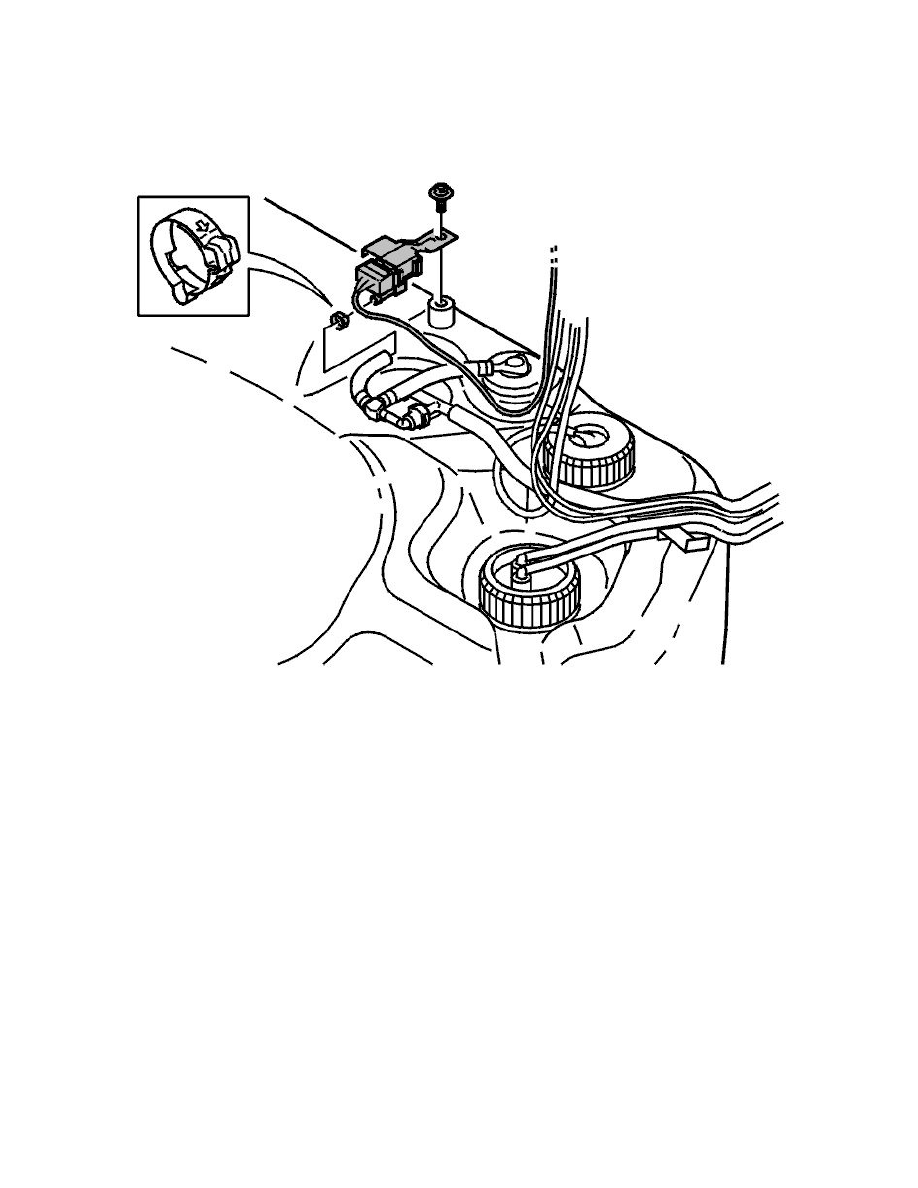

Removing the pressure sensor
Lower the tank to access the pressure sensor from above. See Fuel tank, replacing See: Fuel Delivery and Air Induction/Fuel Tank/Service and
Repair/Removal and Replacement/Fuel Tank, Replacing
Remove
-
the screw
-
the connector
-
the hose clamp and hose.
Installation
Installation
In reverse order
