S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
-

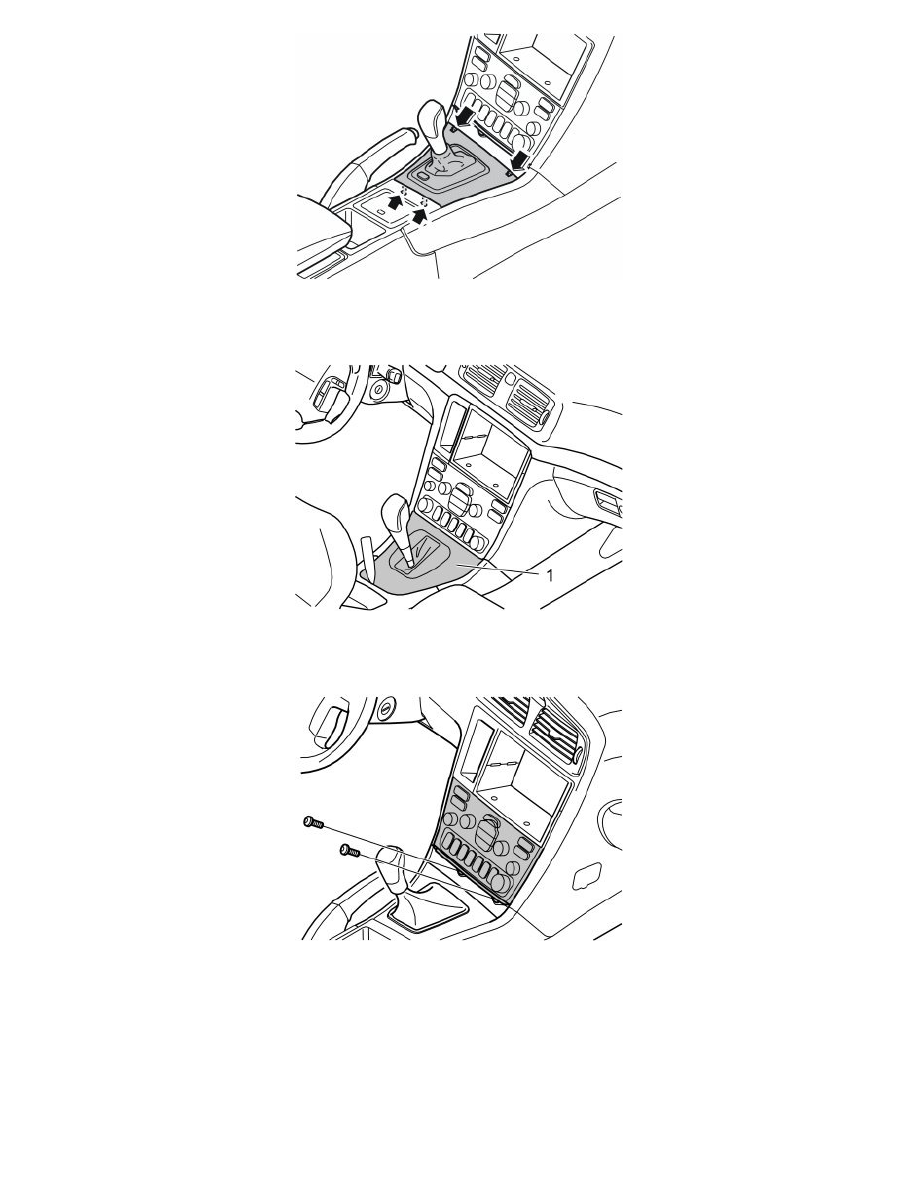

Remove the panel. Press in the catches at the front edge.
Illustration C applies to the S80
-
Remove the panel (1) and the boot. Carefully pry off the panel. Use a weatherstrip tool.
Illustration A applies to the S60 and the V70
-
Remove the two screws from the dashboard environment panel.
Illustration B applies to the S80
