S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
-

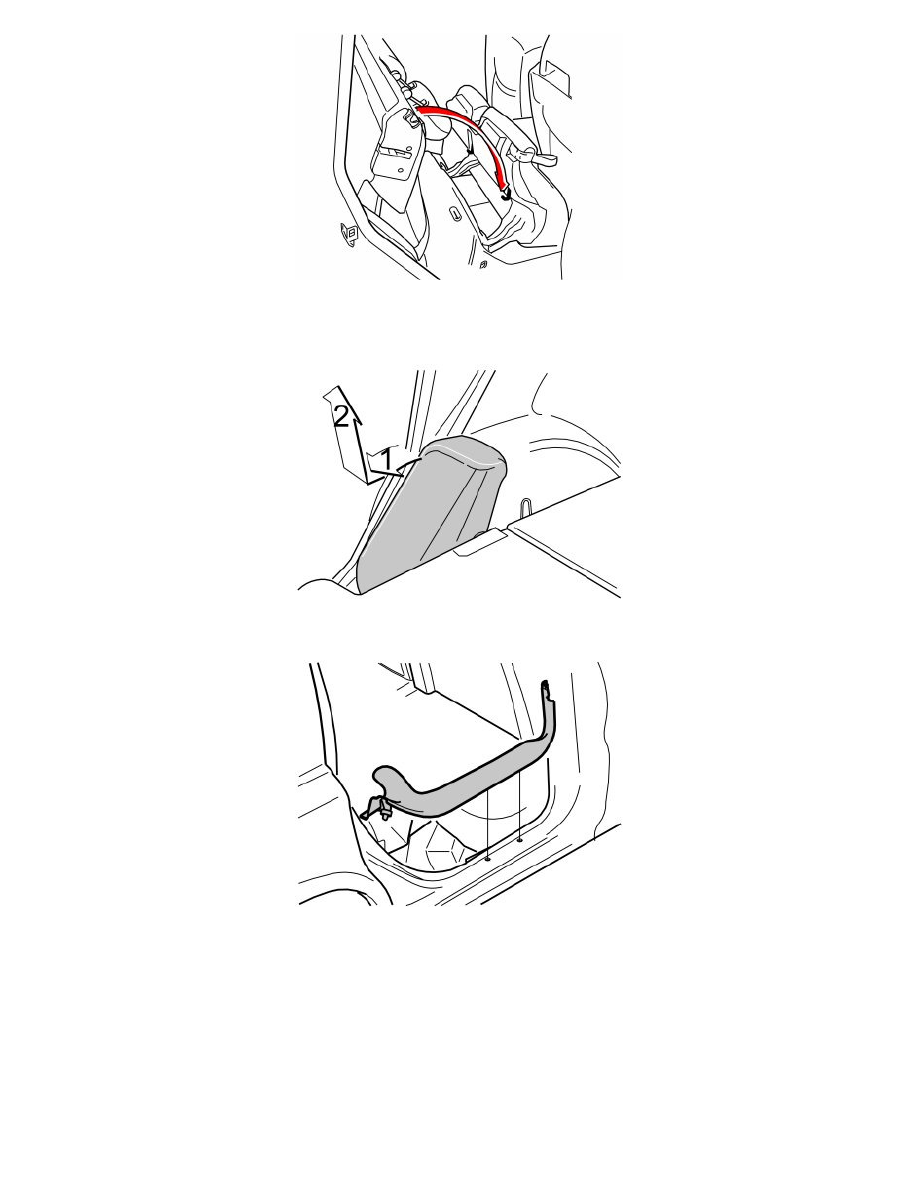

Fold the right rear backrest forward.
Illustration C
-
Remove the right side cushion. First pull the upper edge of the cushion backwards. Then lift the cushion.
-
Pull the door sill out of the right-hand rear door. Start at the rear edge
-
Push the floor and insulation panels to one side so that the connectors in the front edge of the wheel arch can be seen.
Cargo compartment preparations (S60)
