S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
-

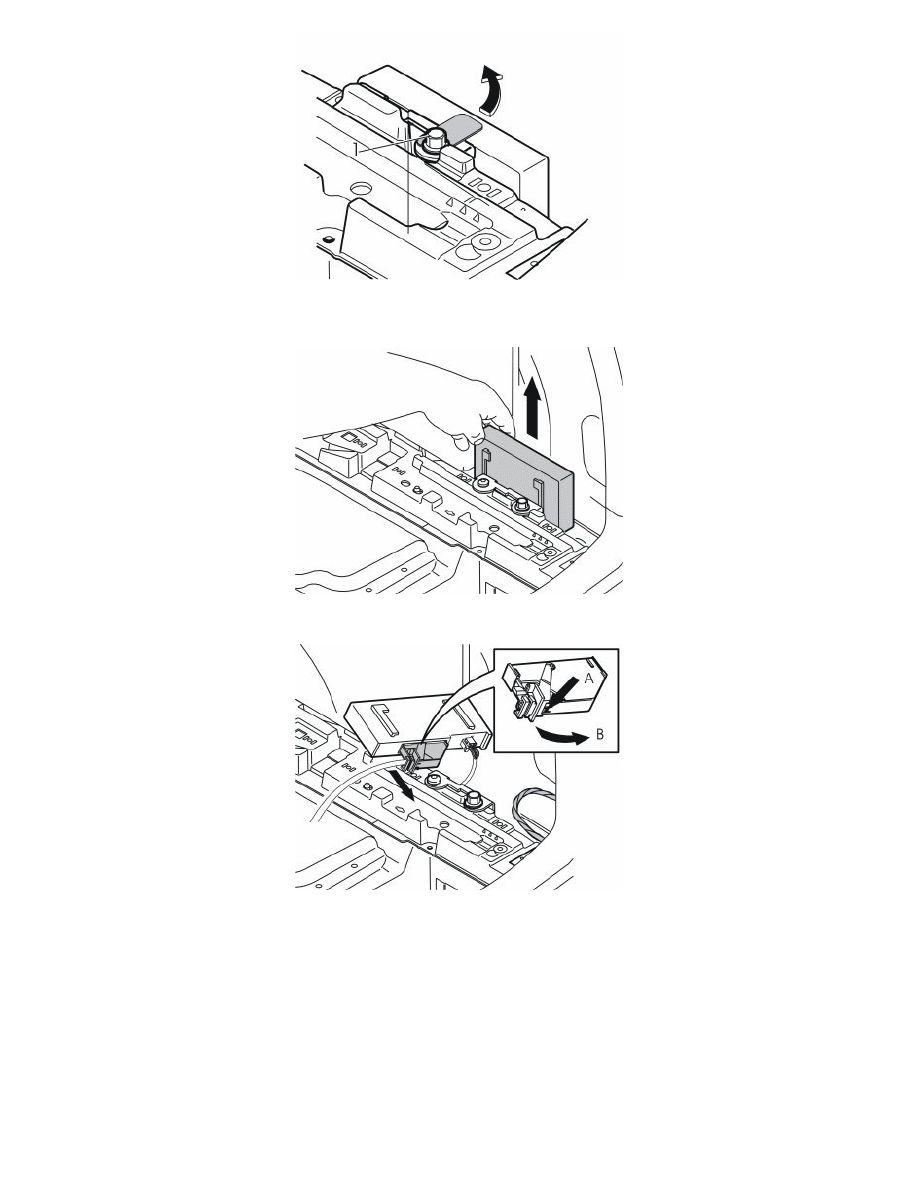

Remove the screw (1) from the accessory electronic module lock facing
-
Pull the lock facing out to the right. Remove the lock facing.
-
Lift the accessory electronic module out of the bracket.
-
Disconnect the large connector from the Accessory Electronic Module. First press in catch A. Pull the black locking handle B in the direction of
the arrow until a click is heard. Disconnect the connector
-
Disconnect the connector from the accessory electronic module.
