S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
-
Turn the whole unit upside-down and place a soft separator panel on the top of the Jukebox, so that it is pressed against the bottom of the console.
-

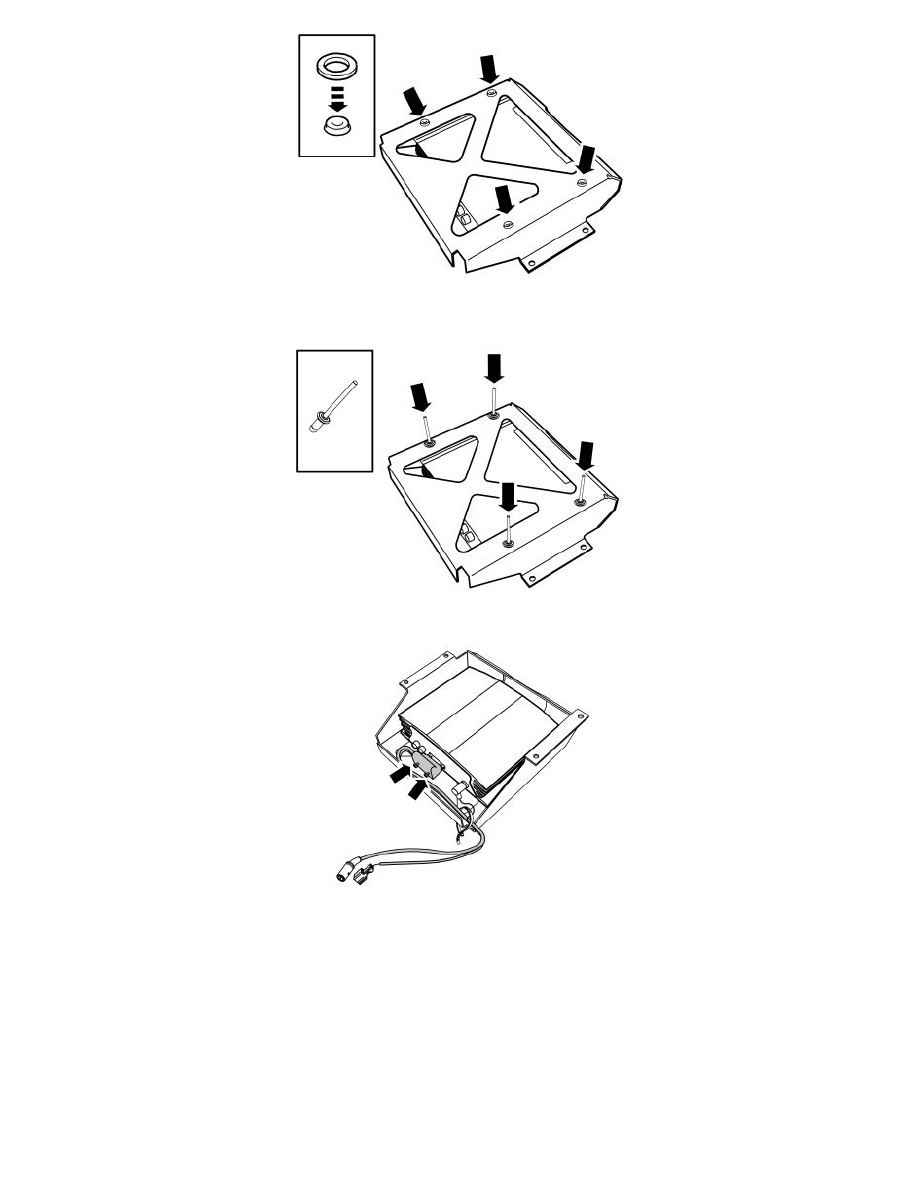

Take the four plastic washers and position them over the spacer washers previously installed.
-
Take the four blind rivets and rivet the Jukebox into the console.
-
Take the adapter cable from the kit and connect in the corresponding socket in the rear edge of the Jukebox.
-
Tighten the connector screws.
-
Position the cables on the inside of the rear of the console.
-
Take a tie strap from the kit and clamp in the cable at one corner of the console as illustrated.
