S60 2.5T L5-2.5L Turbo VIN 59 B5254T2 (2006)
-
Turn the ignition key to position 0.
-
Wait at least five minutes before disassembling the connectors or removing other electrical equipment.
-

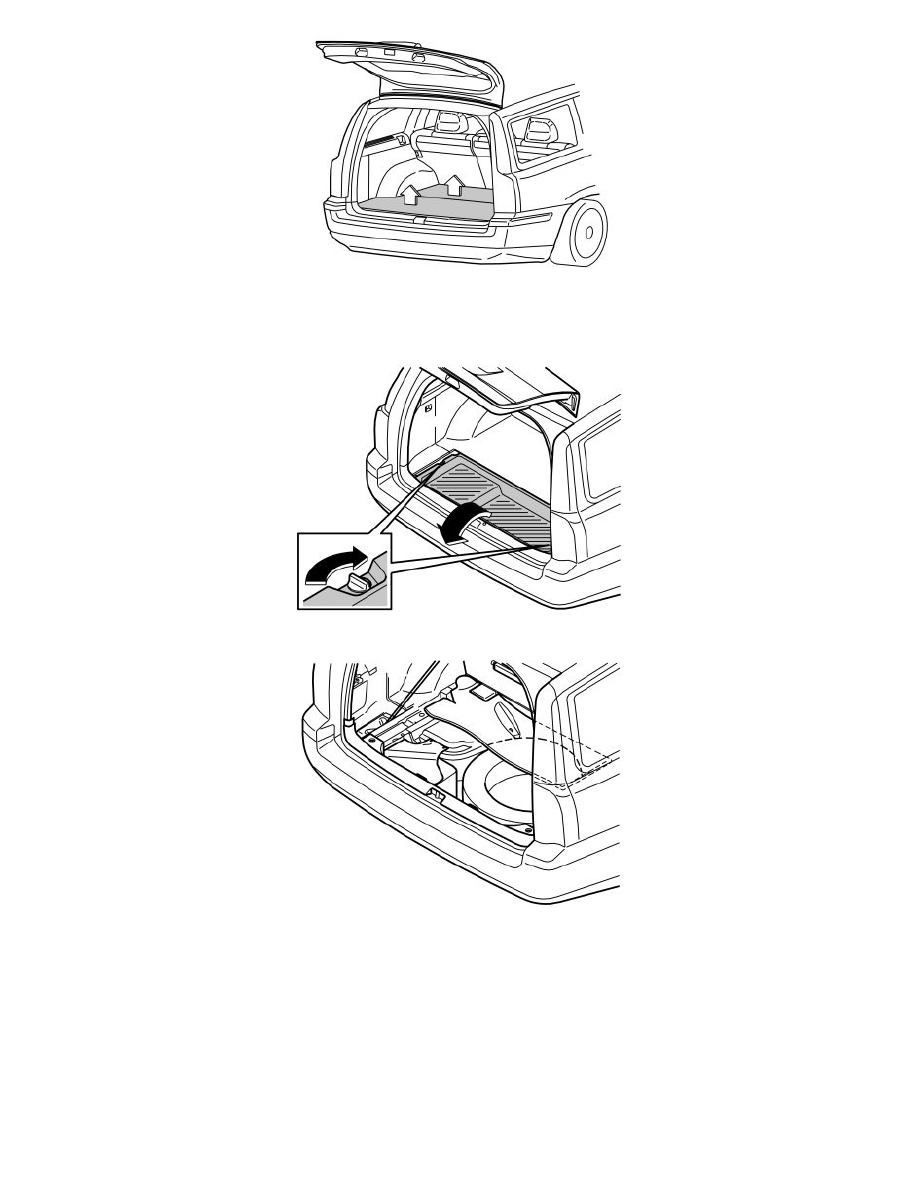

Remove both floor hatches by folding them up and pulling them towards the rear.
-
Detach the storage box under the rear floor hatch by turning the clips on the right-hand and left-hand sides 90°. Lift out the box.
-
Cut out the insulation panel as illustrated.
